Customizable Design Glass Melting Furnace for Various Glass Production

Name: Customizable Design Glass Melting Furnace for Various Glass Production
Brand: JEFFER Engineering and Technology Co.,Ltd
SKU: Customized
Availability: InStock

Brand Name:	JEFFER
Model Number:	Customized
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	90 Days After Receiving The Down Payment
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, ISO45001

Material:

Fused AZS, Magnesium Brick

Kind Of Fuel:

Customized

Capacity:

Customized

Kind Of Glass:

Soda-Lime

Voltage:

380V

Condition:

New

Application:

Glass Industry

Consumption:

Energy Saving

Warranty:

One Year

After-Sales Service:

Engineering Overseas Service Available

Packaging Details:

Wooden Case, Tray, Steel Frame, Etc

Supply Ability:

1 Set Per 3 Months

Product Description

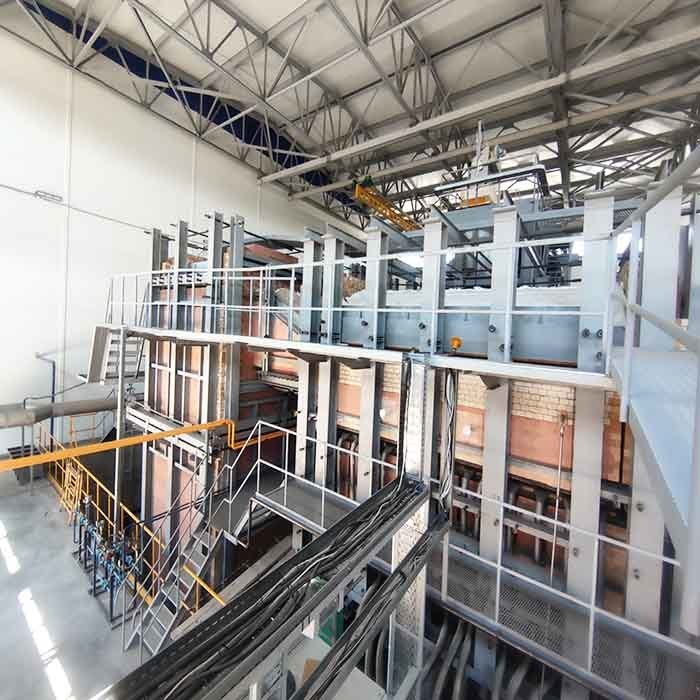

Customizable Design Glass Melting Furnace for Various Glass Production

1. Brief Description

Glass melting furnace refers to the thermal equipment used in glass manufacturing to melt glass mixtures. Mix the powder prepared according to the glass composition and the added clinker (broken glass) at high temperature in the kiln to melt, clarify, and form a glass liquid that meets the forming requirements. Glass manufacturing has a history of 5000 years, and the manufacturing method of using firewood as fuel and melting glass materials in clay jars has continued for a long time. In 1867, the Siemens brothers in Germany built a continuous coal-fired tank furnace. After 1945, glass melting furnaces developed rapidly.

2. Melting process

The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.

Silicate forming

The mixture is converted into a sintered material composed of silicates and silica.

Glass liquid forming

In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles.

Clearing

The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.

Homogenization

The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole.

Cooling

Adjust the viscosity to be suitable for forming.

3. Furnace melting technology system

Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.

Item	Description
Temperature	The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.
Pressure	Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.
Bubbing	Stable shape and position of bubble are an important sign to estimate the melting performance, which will also affect the production capacity of furnace and quality of glass liquid.

Customizable Design Glass Melting Furnace for Various Glass Production 0

4. FAQ

Q: Who we are?

A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.

Q:Can you offer design service?

A: Yes, we could design full solution drawings as per your requirements.

Q: Do you offer installation on site overseas?

A:Yes, we can provide our engineer to supervise the installation work on site or provide the the whole installation team on site to finish the project.
