Product Details
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001， ISO14001， ISO45001
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 90 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 months
Capacity: |
100 Tpd |
Material: |
Fused AZS, Silica Brick, Magnesium Brick |
Kind Of Glass: |
Soda-lime |
Color: |
Flint |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Energy Saving |
Waranty: |
One Year |
Application: |
Glass Industry |
After-salses Service: |
Engineering Overeas Service Available |
Capacity: |
100 Tpd |
Material: |
Fused AZS, Silica Brick, Magnesium Brick |
Kind Of Glass: |
Soda-lime |
Color: |
Flint |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Energy Saving |
Waranty: |
One Year |
Application: |
Glass Industry |
After-salses Service: |
Engineering Overeas Service Available |

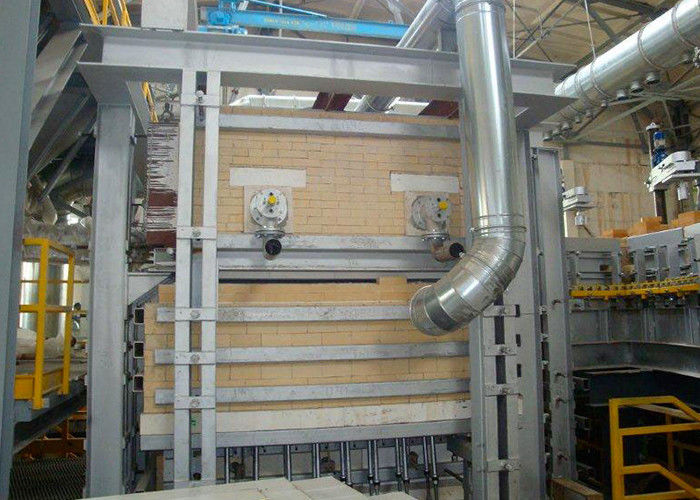

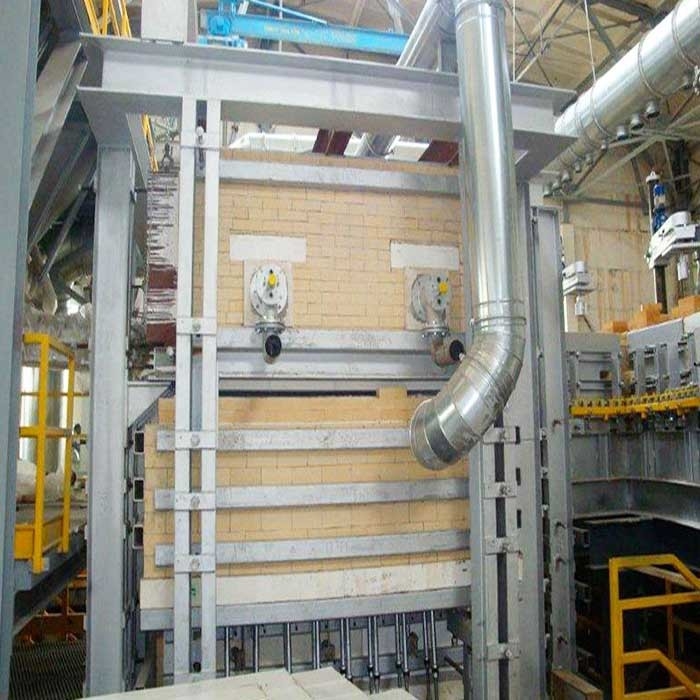

100 Ton Per Day, Glass Melting Furnace, Economic Glass Melter
1. Brief Description
Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.
Glass was used for windows and doors by the Ancient Romans as early as the 4th century.
Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.
Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.
Glass liquid forming
In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles. However, its chemical components and character are not even.
Clearing
The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.
Homogenization
The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole. The temperature of homogenization can be lower than the clearing stage.
2. Furnace structure
It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank.
Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.
The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator.
It is an important part of furnace, it is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the waste gas out.
3. Furnace melting technology system
Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.
| Item | Description |
| Temperature | The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace. |
| Pressure |
Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve. |
| Bubbing | Stable shape and position of bubble are an important sign to estimate the melting performance, which will also affect the production capacity of furnace and quality of glass liquid. |
4. FAQ
Q: Who we are?
A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.
Q:Can you offer design service?
A: Yes, we could design full solution drawings as per your requirements.
Q: Do you offer installation on site overseas?
A:Yes, we can provide our engineer to supervise the installation work on site or provide the the whole installation team on site to finish the project.
Q: How can I get the price?
A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference
