100ton Glass Melting Furnace Machine Energy Saving Device

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customized

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case, tray, steel frame, etc

Delivery Time: 180 days after received the down payemnt

Payment Terms: T/T, L/C

Supply Ability: 1 set per 6 months

Get Best Price
Contact Now
Specifications
High Light:

glass melting Furnace machine

,

tank furnace glass melting

,

Glass Melting Furnace Energy Saving Device

Capacity:
100tpd
Material:
Refractory Materials And Steel Structure
Kind Of Glass:
Soda-lime
Type:
Automatic Control
Condition:
Brand New
Kind Of Fuel:
Natural Gas
Consumption:
Energy Saving
Waranty:
12 Months
Application:
Glass Industrial
After-salses Service:
Engineering Available
Capacity:
100tpd
Material:
Refractory Materials And Steel Structure
Kind Of Glass:
Soda-lime
Type:
Automatic Control
Condition:
Brand New
Kind Of Fuel:
Natural Gas
Consumption:
Energy Saving
Waranty:
12 Months
Application:
Glass Industrial
After-salses Service:
Engineering Available
Description
100ton Glass Melting Furnace Machine Energy Saving Device

Daily Capacity 100ton Glass Melting Furnace Energy Saving Device





1. Brief Introduction



Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.



JEFFER Engineering has designed and supplied a variety of glass melting furnaces for the customers in China and aboard, ranging from the end fired furnace to the electric furnace; from very small scale pot furnace to large float glass furnace.

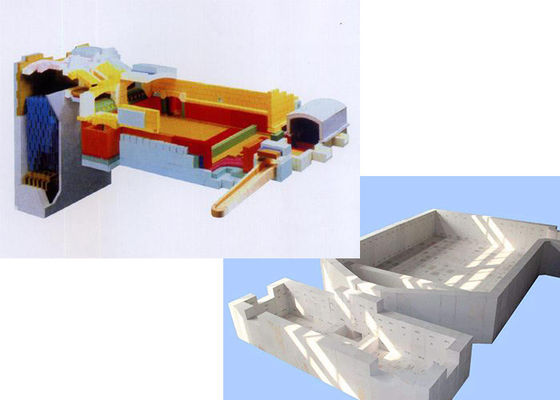

 100ton Glass Melting Furnace Machine Energy Saving Device 0







2. Heating Engergy



We can supply different kinds of heating type furnace, Including:



Natural gas
Heavy oil
Electricity
LPG
Coal Gas
Light diesel oil for stand-by





3.Supply of Equipment & Material

  • Refractory materials
  • Combustion equipment
  • Mechanical equipment
  • Electric equipment, Instrument, and automatic control equipment



4. Structure of Furnace



4.1. Glass melting section

  • It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank. The flame comes from the burner through the port, which feds in preheated air to increase the flame effiency.

4.2. Heat source supply section

  • The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.

4.3. Waste heat recovery section

  • A waste heat recovery device is designed for improving the flame temperature of furnace, which could heat the combustion air and gas by using the waste heat and then to increase the flame temperature and save energy.

4.4. Gas supply and waste gas exhaust

  • A gas supply and waste gas exhaust system is designed to ensure the continues, regular and efficient operation of the furnace, which includes double deck reversal unit, air and gas flue channel, middle flue channel, blower, main flue channel and chimney.



100ton Glass Melting Furnace Machine Energy Saving Device 1





5. Packing



All the equipment shall be carefully and properly packed, and shall meet the requirements of ocean and inland transportation. The SELLER shall take measures to protect the equipment from the damage of rain water, and moisture in valid time, and ensure the equipment shall be anti-corruption, shockproof and deformation-proof.

100ton Glass Melting Furnace Machine Energy Saving Device 2



6. FAQ



Q: Who we are?

A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.



Q:Can you offer design service

A: Yes, we could design full solution drawings as per your requirements.



Q: How can I get the price?

A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference.



Q: Which shipment is available?
A: By sea, by air, by rail or as your requirement.
