100 TPD Sheet Glass Making Machine
, ISO45001 Sheet Glass Making Machine
, 100TPD steel glass making machine

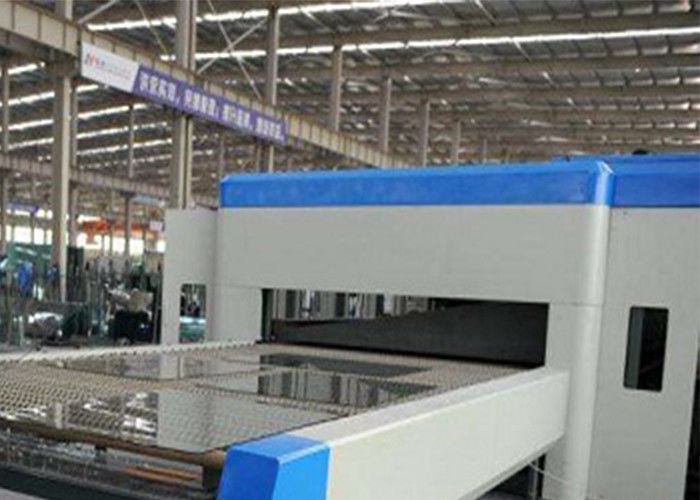

100 TPD Flint Sheet Glass 380V Sheet Glass Making Machine for Construction
100 TPD Flint Sheet Glass 380V Sheet Glass Making Machine for Construction
1. Brief Description
Sheet Glass is made using a series of rollers that draws the molten glass vertically up out of the mixing tank (where the glass is still a liquid), which is also called Glaverbel Glass. The glass is rolled up vertically, and then as it is cooling, turned horizontally, for further cooling and processing. Sheet glass has historically been used for thinner “flat glass” products. The sheet process has limitations regarding thickness and overall size as well as clarity but was less expensive than the old plate glass grinding process so it became more commonly used in situations where a thinner, typically lower cost but lower quality glass could be used. Residential windows, desk tops, picture frames and so forth were typically made with sheet glass.
2. Characteristic
| Item |
Description |
| 1 |
Long-term stable production of thin glass under 3mm. |
| 2 |
Good flatness |
| 3 |
Small variation in thickness |
| 4 |
Excellent product quality |
3. Scope of Supply
- Raw material treatment system
- Internal and external cullet system
- Glass furnace
- Forming device
- Cold end device
- Utlity equipemnt
- Auto control system
4. Raw Materials
Main materials are mainly including:
| 1. |
Silica Sand |
| 2. |
Dolomite |
| 3. |
Limestone |
| 4. |
Feldspar |
| 5. |
Soda Ash |
| 6. |
Salt Cake |
| 7. |
Cullet |
5. Main Equipment Description
For batching and mixing the raw materials.
The melting tank is key part of glass production line, the refractory materials quality is very important.
Compared with the float glass process, the sheet glass is combined with slotless process and horizontal stretching process, forming the glass liquid by slotless tank and stretching rotation method.
The purpose of glass annealing is to eliminate the internal residual stress and optical heterogeneity of float glass in order to stabilize the internal structure of glass.
FAQ
Q: Who we are?
A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.
Q: Can you offer design service?
A: Yes, we could design full solution drawings as per your requirements.
Q: How can I get the price
A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference.
