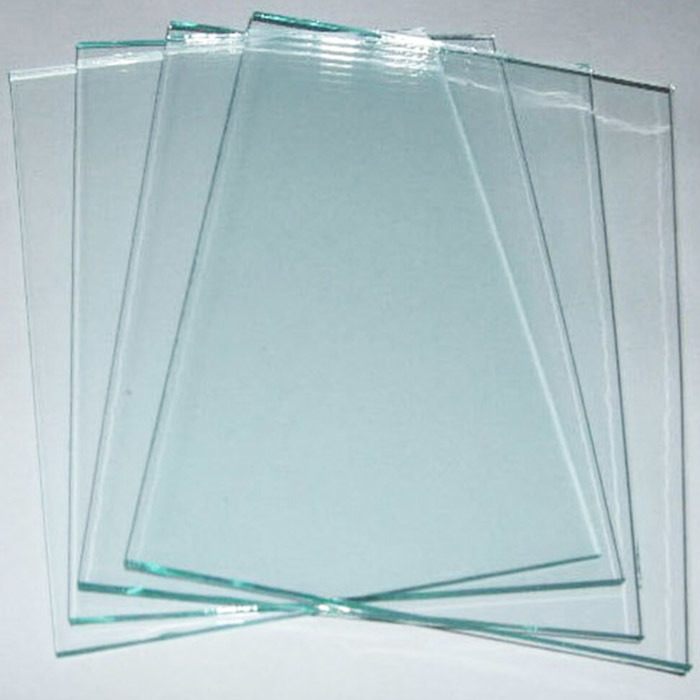

Flat Window ISO45001 50 TPD Sheet Glass Making Machine

Flat Window ISO45001 50 TPD Sheet Glass Making Machine

  • Flat Window ISO45001 50 TPD Sheet Glass Making Machine
Flat Window ISO45001 50 TPD Sheet Glass Making Machine
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customization
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wood case, tray, steel frame......
Delivery Time: 120 days after receiving the down payment
Payment Terms: T/T, L/C
Supply Ability: 1 sets per 4 months
Contact Now
Detailed Product Description
Name Of Product: Sheet Glass Application: Window Construction
Raw Material: Silica Sand, Condition: New
Capacity: 50tpd Voltage: 380V
Dimension: Customized Warranty: 1 Year
Service: Engineer Oversea Service Avaliable
High Light:

50 TPD Sheet Glass Making Machine


50 TPD ISO45001 glass manufacturing machine


ISO45001 Sheet Glass Making Machine

50 Ton Per Day, Sheet Glass Making Machine, Flat Glass, Window Glass



1. Brief Description

Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.


Nowadays, the international glass new technology is developing in the fields of energy, materials, environmental protection, information, biology. Developing new technology by changing the external and internal performance of glass product, it allows the glass product having excellent function of strength, energy saving, thermal insulation, fire resistance, sunlight protective......etc.


Production process of sheet glass was created by Belgium Glaverbel Company in 1961.  Under this kind of process, it can achieve a glass thickness from 0.8mm to 12mm.

2. Characteristic


Item Description
1 Long-term stable production of thin glass under 3mm.
2 Good flatness
3 Small variation in thickness
4 Excellent product quality


3. Scope of Supply

  • Raw material treatment system
  • Internal and external cullet system
  • Glass furnace
  • Forming device
  • Cold end device
  • Utlity equipemnt
  • Auto control system

4. Raw Materials

Main materials are mainly including:

Silica Sand
Soda Ash
Salt Cake


5. Main Equipment Description

  • Batch Plant

For batching and mixing the raw materials.

  • Furance

The melting tank is key part of glass production line, the refractory materials quality is very important.

  • Forming

Compared with the float glass process, the sheet glass is combined with slotless process and horizontal stretching process, forming the glass liquid by slotless tank and stretching rotation method.


  • Annealing Lehr

In glass technology, annealing means to put the glass into the annealing lehr for a certain time or reduce the temperature with a slow speed, so as to no additional permanent stress or temporary stress will produce. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.


The purpose of glass annealing is to eliminate the internal residual stress and optical heterogeneity of float glass in order to stabilize the internal structure of glass.

6. Application


This type of ultrathin glass is mainly used for instrument, electrics and crafts manufacturing.
