Refractory 30 TPD Electric Glass Furnace

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Suitable packing for multi-transportation

Delivery Time: 150 days after received the down payemnt

Payment Terms: L/C, T/T

Supply Ability: 1 set

Get Best Price
Contact Now
Specifications
High Light:

300 tpd Electric glass Furnace

,

300 tpd glass tempering furnace

,

ISO14001 Electric glass Furnace

Product Name:
Electric Glass Furnace
Fuel Type:
Electricity
Material:
Refractry Material
Certification:
ISO9001, ISO14001, ISO45001
Brand:
JEFFER
Kind Of Glass:
Soda-lime
Consumption:
Energy Saving
Application:
Glass Industry
Product Name:
Electric Glass Furnace
Fuel Type:
Electricity
Material:
Refractry Material
Certification:
ISO9001, ISO14001, ISO45001
Brand:
JEFFER
Kind Of Glass:
Soda-lime
Consumption:
Energy Saving
Application:
Glass Industry
Description

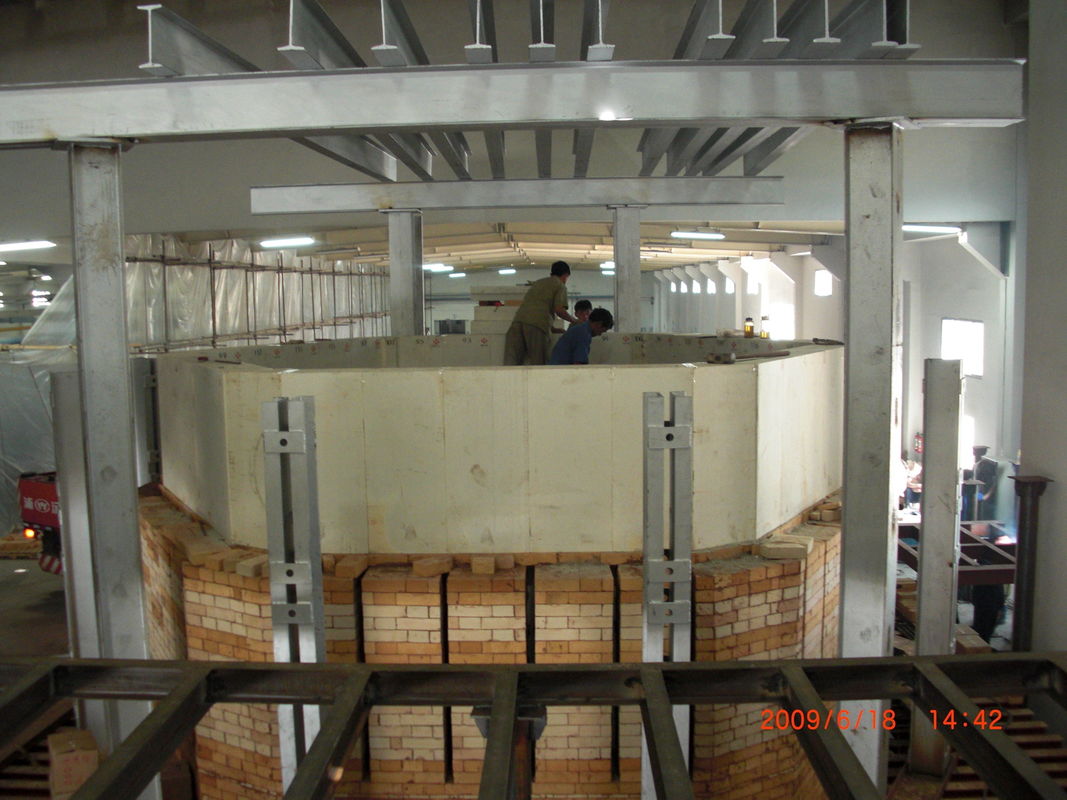

Refractory 30 TPD Electric Glass Furnace

Electric Furnace





Brief Introduction



Electric furnace is advanced melting technology, which can produce stable and high quality glass liquid and has nearly no emissions.





Application



Electric furnace is especially suitable for small output but high quality glass production, such as Crystal Glass, Solar Glass, which is difficult to produce by normal furnace.

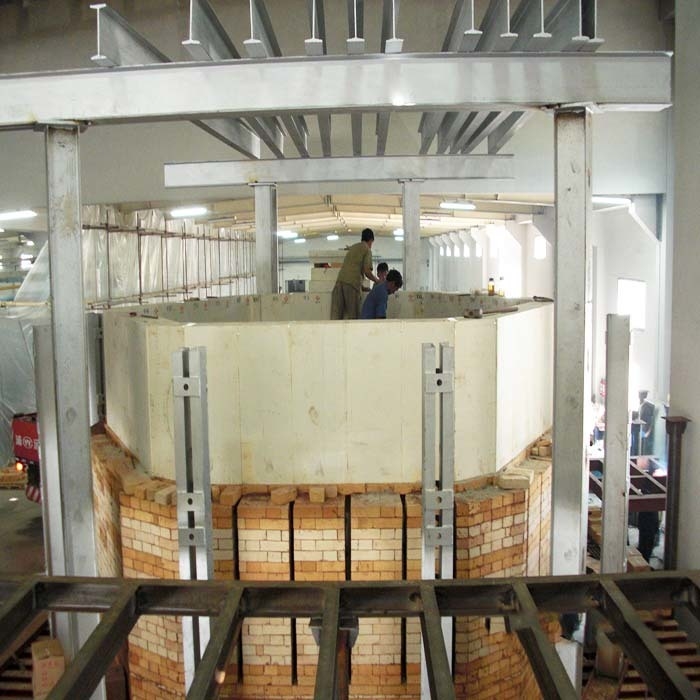

Refractory 30 TPD Electric Glass Furnace 0



1. Brief Description




Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.




Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.



Glass liquid forming



In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles. However, its chemical components and character are not even.



Clearing



The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.



Homogenization



The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole. The temperature of homogenization can be lower than the clearing stage.





2. Furnace structure



  • Melting section

It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank.



  • Dog house

Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.



  • Air, gas access

The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.



  • Port

It is an important part of furnace, it is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the waste gas out.









3. Furnace melting technology system





Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.





The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.





Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.





Item Description
Temperature The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.
Pressure Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.
Bubbing Stable shape and position of bubble are an important sign to estimate the melting performance, which will also affect the production capacity of furnace and quality of glass liquid.
