330ml Flint Glass Bottle Production Line for Pharmaceutical Applications

Batch materials undergo physicochemical solid-phase reactions during heating, releasing gaseous products and forming opaque sinter composed of silicate and SiO₂.

Sinter melts, transforming silicate and SiO₂ into flint glass liquid with numerous bubbles. Chemical components and characteristics remain uneven at this stage.

Continuous heating reduces viscosity, releasing gaseous impurities and eliminating visible bubbles from the liquid pool.

Glass melting involves complex physical, chemical, and physicochemical phenomena that transform mechanically mixed raw materials into homogeneous molten glass liquid.

The process occurs in melting sections where the upper flame space and lower melting tank work together, with burners feeding preheated air to increase flame efficiency.

• Shear angle: adjustable between RH30° - LH90°
• Available for S.G, D.G and T.G.

• Standard glass production equipment with various gobs and sections
• Compatible with all combustion types and annealing lehr specifications
• High-precision machining ensures stability and reliability

• Uses continuous cam in different sections
• Pneumatic mold clamping with 5 bar compressor air
• Air cylinder-controlled scoop with glass rejection
• SMC electric valves and regulators
• Adjustable gob position delivery system for different section modes

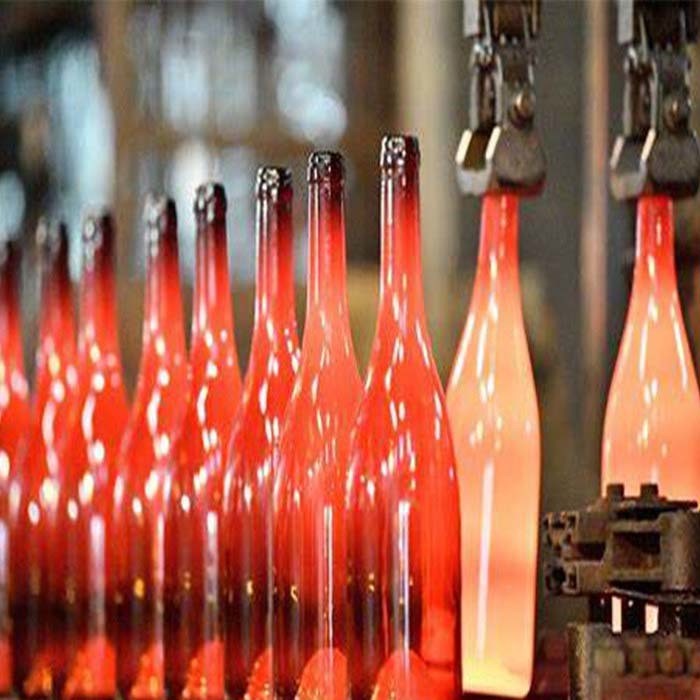

Designed for quick, stable conveyance of glass products from I.S. machine or press machine to cross conveyor, especially suitable for high-speed production lines.

Installed in front of annealing lehr for cross-conveying glass products, working with stacker to push them into annealing lehr.

• Pushes glass products from cross conveyor into annealing lehr
• Inverter-adjusted pushing speed
• Digital counter-controlled pushing quantity

• Continuous annealing for tableware, bottles, cans, and other glass products
• Heating type: electricity
• Control mode: continuous proportionate automatic control
• Temperature control precision: ±1℃
• Maximum temperature: 630℃
• Drive: Belt running with stepless speed regulation, frequency control by inverter

Various packing devices accommodate different packing types for domestic glass products.
