100Tpd Refractory Material End Fired Furnace Natural Gas Glass Melting Furnace

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case, tray, steel frame, Etc

Delivery Time: 90 days after receiving the down payment

Payment Terms: T/T, L/C

Supply Ability: 1 set per 3 months

Get Best Price
Contact Now
Specifications
Highlight:
Fuel:
Natural Gas
Condition:
New
Material:
AZS, Silicate
Color:
Flint
Capacity:
100Tpd
Voltage:
380V
Control Method:
DCS, PLC
Application:
Domestic
Warranty:
One Year
After-sales Service:
Engineering Overseas Service Available
Fuel:
Natural Gas
Condition:
New
Material:
AZS, Silicate
Color:
Flint
Capacity:
100Tpd
Voltage:
380V
Control Method:
DCS, PLC
Application:
Domestic
Warranty:
One Year
After-sales Service:
Engineering Overseas Service Available
Description
100Tpd Refractory Material End Fired Furnace Natural Gas Glass Melting Furnace

100Tpd Refractory Material End Fired Furnace Natural Gas Glass Melting Furnace





1.Brief Description



An ‌End-Fired Furnace‌ (is also called as ‌End-Port Furnace‌ or ‌Horseshoe-Fired Furnace‌) is an industrial thermal processing unit where ‌combustion burners are positioned at one or both ends‌ of the furnace chamber. The hot gas flow from combustion moves along the furnace direction, transferring heat through adesigned with longitudinally arranged combustion ports and a U-shaped flame path.



The end fired furnace has a small flame coverage area, the flame reversing brings periodic temperature fluctuation and hot spot movement.

In addition, the number of port limits the furnace width and furnace scale. End fired furnace is suitable for making all kinds of hollow products (bottles, jars, vessels, chemical instruments, bubble shells, glass tubes, etc.), pressing products and glass balls without special requirement on the quality of glass.



Its typical melting capacity is 30 – 500 t/d, in some cases up to 700 t/d can be achieved. Limitations in furnace size result from flame length and crown span width, especially of the burner ports.



JEFFER Engineering has designed and supplied the end-fired furnaces for the customers in China and aboard.

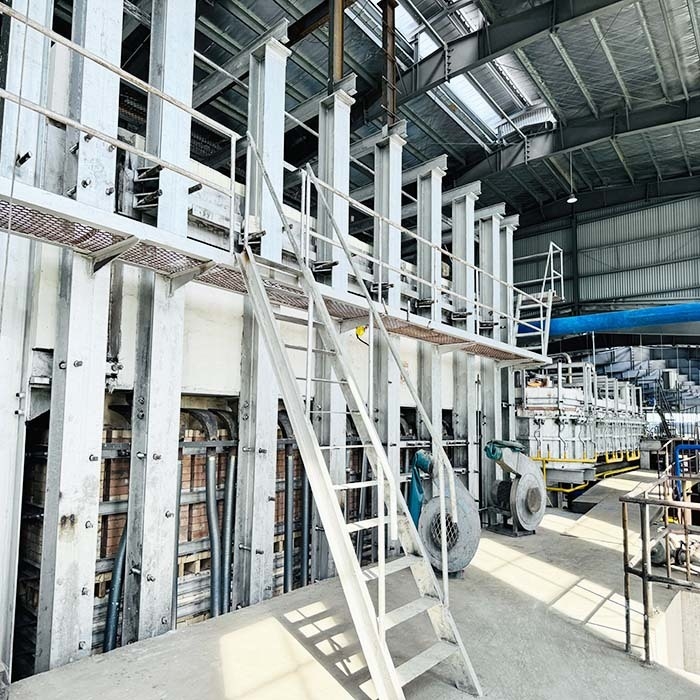

100Tpd Refractory Material End Fired Furnace Natural Gas Glass Melting Furnace 0



2.Type of Furnace



Description Specification
Fired furnace The combustion fuel can be natural gas, heavy oil, diesel oil…… for this kind of furnace.
Electric furnace Electricity is the fuel for this kind of furnace.
Fired-electric furnace This kind of furnace is mainly using combustion fuel, electricity is used as a supplementary heating source.



3. Heating Energy of Furnace



We can supply different kinds of heating type furnace. Including:

  • Natural gas
  • Heavy oil
  • Electricity
  • LPG
  • Coal gas
  • Light diesel oil for stand-by

4.Furnace Structure

  • Glass melting section
  • Heat source supply section
  • Dog house
  • Cooling section
  • Waste heat recovery section
  • Gas supply and waste gas exhaust



5. Supply Equipment and Materials



Item Description
1 Refractory materials
2 Combustion equipment
3 Mechanical equipment
4 Electric equipment, instrument, and automatic control equipment



6. Technical Advantages



Item Description
1 3D modeling design
2 Single/double/multi pass regenerator
3 Chimney located at the top of regenerator
4 Unique port structure
5 Deep refining technology
6 Unique throat cooling structure
7 Optimized tank wall cooling arrangement
8 Underport burner firing technology
9 Separate regenerator chamber technology
10 Electrical boosting technology
11 Bubbling technology
12 Intelligent single/dual fuel combustion system
13 Rich oxygen combustion technology
14 Full oxygen combustion technology
15 Induced draft fan exhaust technology
16 Injector fan exhaust technology
17 Key structure pre-assembly before delivery
18 Low energy consumption and long life technology
19 Advanced and reliable computer automatic control system (PLC/DCS, SCADA)
20 Low environmental impact
21 Flue gas treatment technology
22 Waste Heat recovery technology



FAQ

Q: Who we are?

A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.

Q: Can you customize the products?

A: Yes, we have an experienced professional team ready to make design according to the requirement of customers.

Q: Do you offer installation on site overseas?

A:Yes, we can provide our engineer to supervise the installation work on site or provide the the whole installation team on site to finish the project.

Q: Confidential protection provide?

A: Strict drawing management system eliminates the risk of the leakage and protects your interests.
