Customizable Natural Gas Industrial Glass Furnace Energy Saving Glass Furnace

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001,ISO14001,ISO45001

Model Number: Customizetion

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Wooden Case, Traay, Steel Frame,Etc

Delivery Time: 90 Days After Receiving the Down Payment

Payment Terms: T/T, L/C

Supply Ability: 1 Set per 3 months

Get Best Price
Contact Now
Specifications
Highlight:
Capacity:
Customized
Material:
Refractory Material
Type:
Automatic Control
Condition:
New
Kind Of Product:
Glass Product
Consumption:
Energy Saving
Kind Of Fuel:
Natural Gas
Application:
Glass Industry
Warranty:
One Year
After-sales Service:
Engineering Overseas Service Available
Capacity:
Customized
Material:
Refractory Material
Type:
Automatic Control
Condition:
New
Kind Of Product:
Glass Product
Consumption:
Energy Saving
Kind Of Fuel:
Natural Gas
Application:
Glass Industry
Warranty:
One Year
After-sales Service:
Engineering Overseas Service Available
Description

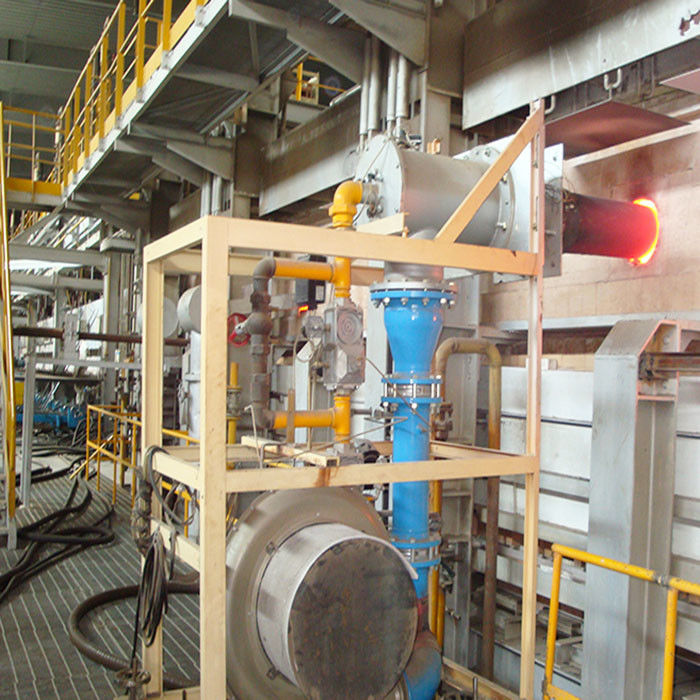

Customizable Natural Gas Industrial Glass Furnace Energy Saving Glass Furnace

1. Brief Description







Glass was used for windows and doors by the Ancient Romans as early as the 4th century.



Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.



Physicochemical changes in each glass melting stage:



Silicate forming



In this stage, the components of batched materials will produce a physicochemical solid phase reaction during heating process, in which the gaseous products will be released from the batched materials and produce a new opacity sinter ultimately, which is formed by silicate and SiO2.



Glass liquid forming



In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles. However, its chemical components and character are not even.



Clearing



The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.



Homogenization



The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole. The temperature of homogenization can be lower than the clearing stage.







2. Type of Furnace


Capacity



Small scale furnace Daily furnace capacity: below 50tons
Medium scale furnace Daily furnace capacity: 50tons~150tons
Large scale furnace Daily furnace capacity: 150tons plus





Heating source

Fired furnace The combustion fuel can be natural gas, heavy oil, diesel oil…… for this kind of furnace.
Electric furnace Electricity is the fuel for this kind of furnace.
Fired-electric furnace This kind of furnace is mainly using combustion fuel, electricity is used as a supplementary heating source.





Flue gas waste heat recovery

  • Regenerator
  • Recuperator



3. Furnace structure



According to current fired furnace structure, it is mainly divided into four parts:

  • Glass melting section
  • Heat source supply section
  • Waste heat recovery section
  • Gas supply and waste gas exhaust



Melting section:



It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank. The flame comes from the burner through the port, which feds in preheated air

to increase the flame effiency.





Air, gas access



The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.





4. Furnace melting technology system



Reasonable melting technology is a system which could ensure a normal daily production. It will have an important function for high production, high quality, low consumption and furnace campaign.



Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.





5. Packing and transportation of furnace equipment and devices



Customizable Natural Gas Industrial Glass Furnace Energy Saving Glass Furnace 0
