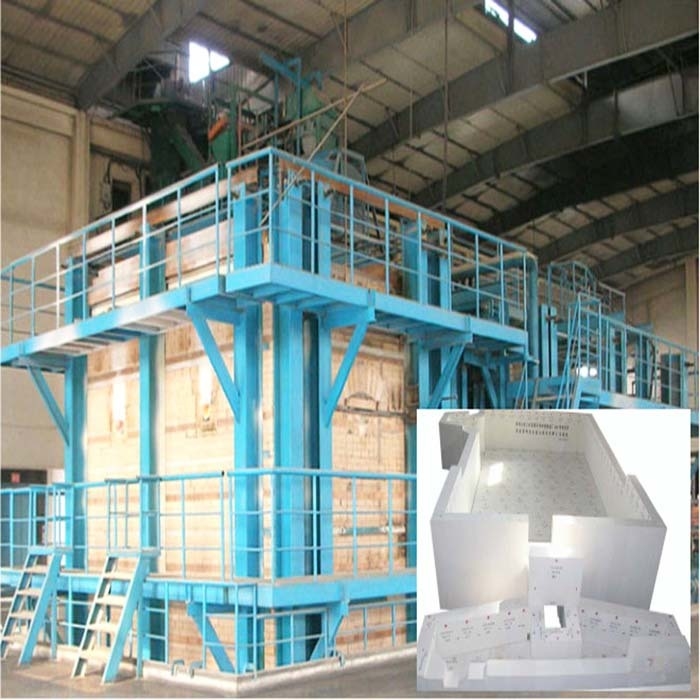

30TPD Flint End Fired Furnace Natural Gas Container Glass

30TPD Flint End Fired Furnace Natural Gas Container Glass

  • 30TPD Flint End Fired Furnace Natural Gas Container Glass
30TPD Flint End Fired Furnace Natural Gas Container Glass
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 90 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 months
Contact Now
Detailed Product Description
Capacity: 30 Tpd Material: Refractory Materials
Kind Of Glass: Soda-lime Color: Flint
Condition: New Kind Of Fuel: Natural Gas
Consumption: Energy Saving Waranty: One Year
Application: Glass Industry After-salses Service: Engineering Overeas Service Available
High Light:

Flint End Fired Furnace

,

pre chamber End Fired Furnace

,

30TPD Container Glass End Fired Furnace

Container Glass, Daily Rate 30 Ton Per Day, End Fired Furnace, Glass Melter





1. Brief Description



Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.


Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.



The end fired furnace is named by the longitudinal arrangement of the burner port and the U shape of flame combustion route. At present, the end fired furnace is more widely used in the glass industry.


Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.







 2. Furnace structure



Melting section

It is the part that melts the batch material and cleans and homogenizes the glass liquid. The upper space in the melting part is called the flame space, and the lower part is the melting tank.
The flame exits the burner through ports where preheated air is added to increase flame efficiency.
Dog house
The ingredients enter the furnace through the kennel, and the heat is transferred through the flame space into the glass liquid.
Air, gas access
After the heated air and gas exit the regenerator, they flow through this channel into the pre-chamber for mixing. This is also the channel through which the flue gas flows from the flame space into the regenerator.
pre-chamber
After the air and gas flow out of the channel, under the action of the vortex motion of the air flow and the diffusion and collision of molecules, the air and gas will mix before flowing into the furnace.



 3. Furnace melting technology system



Furnace melting technology includes temperature, pressure, bubbling, glass level, fuel, reversing system, etc.
The temperature refers to the temperature of the furnace, not the temperature of the entire furnace. The temperature profile is from the melting tank through the length of the furnace.
The furnace pressure is the static pressure of the gas system, which is determined by the pressure distribution curve.
The stability of the shape and position of the bubbles is an important indicator to measure the melting performance, which will also affect the production capacity of the furnace and the quality of the molten glass.

30TPD Flint End Fired Furnace Natural Gas Container Glass 030TPD Flint End Fired Furnace Natural Gas Container Glass 1
