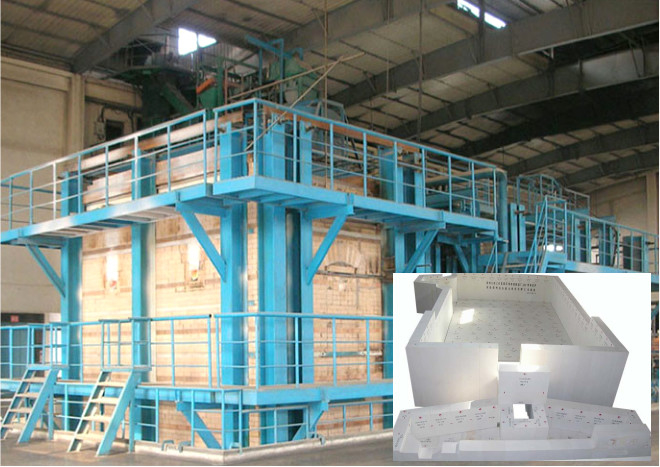

30TPD End Fired Furnace Natural Gas Fuel Glass Furnace Flint Container Glass

30TPD End Fired Furnace Natural Gas Flint Container Glass


1. Brief Description

An ‌End-Fired Furnace‌ (is also called as ‌End-Port Furnace‌ or ‌Horseshoe-Fired Furnace‌) is an industrial thermal processing unit where ‌combustion burners are positioned at one or both ends‌ of the furnace chamber. The hot gas flow from combustion moves along the furnace direction, transferring heat through a glass melting furnace designed with longitudinally arranged combustion ports and a U-shaped flame path.
The end fired furnace has a small flame coverage area, the flame reversing brings periodic temperature fluctuation and hot spot movement.

In addition, the number of port limits the furnace width and furnace scale. End fired furnace is suitable for making all kinds of hollow products (bottles, jars, vessels, chemical instruments, bubble shells, glass tubes, etc.), pressing products and glass balls without special requirement on the quality of glass.

Its typical melting capacity is 30 – 500 t/d, in some cases up to 700 t/d can be achieved. Limitations in furnace size result from flame length and crown span width, especially of the burner ports.


 2. Furnace structure

Melting section
It is the part that melts the batch material and cleans and homogenizes the glass liquid. The upper space in the melting part is called the flame space, and the lower part is the melting tank.
The flame exits the burner through ports where preheated air is added to increase flame efficiency.
Dog house
The ingredients enter the furnace through the kennel, and the heat is transferred through the flame space into the glass liquid.
Air, gas access
After the heated air and gas exit the regenerator, they flow through this channel into the pre-chamber for mixing. This is also the channel through which the flue gas flows from the flame space into the regenerator.
pre-chamber
After the air and gas flow out of the channel, under the action of the vortex motion of the air flow and the diffusion and collision of molecules, the air and gas will mix before flowing into the furnace.

 3. Furnace melting technology system

Furnace melting technology includes temperature, pressure, bubbling, glass level, fuel, reversing system, etc. The temperature refers to the temperature of the furnace, not the temperature of the entire furnace. The temperature profile is from the melting tank through the length of the furnace.
The furnace pressure is the static pressure of the gas system, which is determined by the pressure distribution curve. The stability of the shape and position of the bubbles is an important indicator to measure the melting performance, which will also affect the production capacity of the furnace and the quality of the molten glass.




4.Type of Furnace

5. Heating Energy of Furnace

We can supply different kinds of heating type furnace. Including:

• Natural gas
• Heavy oil
• Electricity
• LPG
• Coal gas
• Light diesel oil for stand-by

6.Furnace Structure

• Glass melting section
• Heat source supply section
• Dog house
• Cooling section
• Waste heat recovery section
• Gas supply and waste gas exhaust

7. Supply Equipment and Materials

8. Technical Advantages

FAQ


Q: Who we are?
A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.
Q: Can you customize the products?
A: Yes, we have an experienced professional team ready to make design according to the requirement of customers.
Q: Do you offer installation on site overseas?
A:Yes, we can provide our engineer to supervise the installation work on site or provide the the whole installation team on site to finish the project.
Q: Confidential protection provide?
A: Strict drawing management system eliminates the risk of the leakage and protects your interests.
