60 Tpd Sheet Glass Making Machine ISO14001 Clear 1mm Homogenization

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wood case, tray, steel frame......

Delivery Time: 120 days after receiving the down payment

Payment Terms: T/T, L/C

Supply Ability: 1 sets per 4 months

Get Best Price
Contact Now
Specifications
High Light:

60 tpd Sheet Glass Making Machine

,

Homogenization Sheet Glass Making Machine

,

Clear 1mm Sheet Glass Making Machine

Name Of Product:
Sheet Glass
Application:
Glass Industry
Raw Material:
Silica Sand, Soda Ash
Condition:
New
Capacity:
60tpd
Voltage:
380V
Dimension:
Customized
Core Component:
Pressure Vessel, Motor, Gear, PLC, Pump, Engine
Service:
Engineer Oversea Service Avaliable
Name Of Product:
Sheet Glass
Application:
Glass Industry
Raw Material:
Silica Sand, Soda Ash
Condition:
New
Capacity:
60tpd
Voltage:
380V
Dimension:
Customized
Core Component:
Pressure Vessel, Motor, Gear, PLC, Pump, Engine
Service:
Engineer Oversea Service Avaliable
Description
60 Tpd Sheet Glass Making Machine ISO14001 Clear 1mm Homogenization



Thickness of 1mm, 60 Ton Per Day, Sheet Glass Making Machine, Clear Glass





1. Brief Description


Glass is a special amorphous inorganic non-metallic material. The main component is silicate, a non-crystalline solid with an irregular structure.
In 1961, the Belgian Grave Bell company pioneered the production process of flat glass. Under this process, it can achieve a glass thickness of 0.8 mm to 12 mm.
Glass melting is the most important process in glass production. It is a forming process that uniformly forms batches of materials into qualified liquid without bubbles under high temperature heating.
The melting process is divided into the following five stages, each of which has its internal connections and influences each other. If the performance of one stage is not perfect, it will affect the next stage and ultimately affect the quality of glass.



Physicochemical changes in each glass melting stage:
  • Silicate forming
In this stage, the components of batched materials will produce a physicochemical solid phase reaction during heating process, in which the gaseous products will be released from the batched materials and produce a new opacity sinter ultimately, which is formed by silicate and SiO2.
  • Glass liquid forming
In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles. However, its chemical components and character are not even.
  • Clearing
The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.
  • Homogenization
The glass liquid is kept at high temperature for a long time, and the ripples are eliminated by the diffusion function, and the whole is uniform. The homogenization temperature can be lower than the clarification stage.


2. Characteristic



Item Description
1 Long-term stable production of thin glass under 3mm.
2 Good flatness
3 Small variation in thickness
4 Excellent product quality




3. Scope of Supply

  • Raw material treatment system
  • Internal and external cullet system
  • Glass furnace
  • Forming device
  • Cold end device
  • Utlity equipemnt
  • Auto control system



4. Main Equipment Description


  • Batch Plant

For batching and mixing the raw materials.


  • Furance

The melting tank is key part of glass production line, the refractory materials quality is very important.


  • Forming

Compared with the float glass process, the sheet glass is combined with slotless process and horizontal stretching process, forming the glass liquid by slotless tank and stretching rotation method.

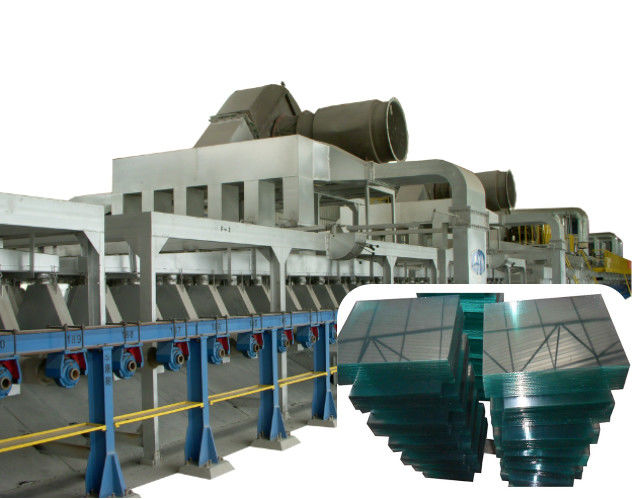

  • Annealing Lehr

In glass technology, annealing means to put the glass into the annealing lehr for a certain time or reduce the temperature with a slow speed, so as to no additional permanent stress or temporary stress will produce. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.



60 Tpd Sheet Glass Making Machine ISO14001 Clear 1mm Homogenization 060 Tpd Sheet Glass Making Machine ISO14001 Clear 1mm Homogenization 1
