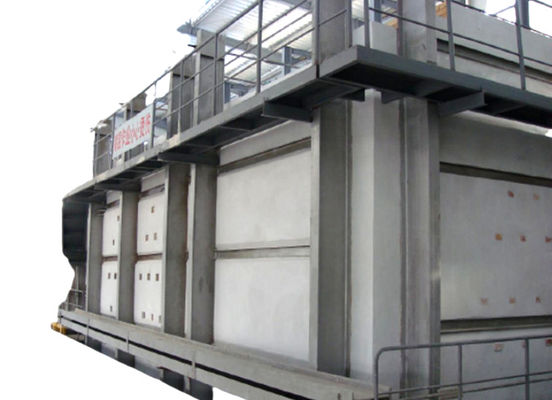

OEM 100 Ton End Fired Furnace For Domestic Glass Melting

OEM 100 Ton End Fired Furnace For Domestic Glass Melting

OEM 100 Ton End Fired Furnace For Domestic Glass Melting
OEM 100 Ton End Fired Furnace For Domestic Glass Melting
Product Details:
Place of Origin: Chongqing, China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: JEFFER-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 90 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 months
Contact Now
Detailed Product Description
Capacity: 100 Ton Material: AZS, Silicate, Mullite
Kind Of Glass: Soda-lime Color: Flint, Amber......
Condition: New Kind Of Fuel: Natural Gas
Control Method: DCS, PLC Application: Domestic Glass
Waranty: One Year After-salses Service: Engineering Overeas Service Available
High Light:

OEM End Fired Furnace


100 Ton End Fired Furnace


100T End-fired furnace for glass

100T Daily Capacity Glass Liquid Melter End Fired Furnace Natural Gas Type



1. Brief Description of 100T Daily Capacity Glass Liquid Melter End Fired Furnace Natural Gas Type


JEFFER Engineering has designed and supplied a variety of glass melting furnaces for the customers in China and aboard, ranging from the end fired furnace to the electric furnace; from very small scale pot furnace to large float glass furnace and constructions.


The end fired furnace has a small flame coverage area, the flame reversing brings periodic temperature fluctuation and hot spot movement.


Compared with the cross fired furnace with the same melting area, the end fired furnace has the advantages of high heat utilization rate, simple structure, small occupation area and low investment cost, easy operation and simply maintenance, etc.


In addition, the number of port limits the furnace width and furnace scale. End fired furnace is suitable for making all kinds of hollow products (bottles, jars, vessels, chemical instruments, bubble shells, glass tubes, etc.), pressing products and glass balls without special requirement on the quality of glass.





OEM 100 Ton End Fired Furnace For Domestic Glass Melting 0


2. Heating Energy of  End Fired Furnace
Item Description
1 Natural gas
2 Heavy oil
3 Coal gas
4 Light diesel oil for stand-by




OEM 100 Ton End Fired Furnace For Domestic Glass Melting 1


3. Furnace Structure

  • Glass melting section

It is the part that melts the batch material and removes and homogenizes the glass liquid. The upper space of the melting section is called the flame space, and the lower part is the melting tank. The flame comes from the burner through the port, and the port is injected with preheated air to improve the flame efficiency.

  • Combustion air supply section

After the hot air and gas flow out of the regenerator, they flow into the precombustion chamber through this channel for mixing. This is also the passage for flue gas to flow into the regenerator from the flame space.


  • Dog house

Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.


  • Cooling section

It is a part for cooling and homogenization of the glass liquid, which is also an access for glass liquid distribution.


  • Waste heat recovery section

In order to increase the furnace flame temperature, a waste heat recovery device is designed, which uses the waste heat to heat the combustion air and gas, increase the flame temperature and save energy.


  • Gas supply and waste gas exhaust

A gas supply and waste gas exhaust system is designed to ensure the continues, regular and efficient operation of the furnace, which includes double deck reversal unit, air and gas flue channel, middle flue channel, blower, main flue channel and chimney.



 4. Supply Equipment and Materials


Item Description

Refractory materials


Combustion equipment


Mechanical equipment

4 Electric equipment, Instrument, and automatic control equipment



5. Packing and Shipping

JEFFER has rich experiences on experiences of products packing , loading and delivery via various transportations.

  • Packed with Double Bister / Plastic Lorap and Rolled with Hemp Rope on Pallet.
  • Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.
  • Fumigation package.
  • Shipping / Train / Express or unpon clients' demands


OEM 100 Ton End Fired Furnace For Domestic Glass Melting 2OEM 100 Ton End Fired Furnace For Domestic Glass Melting 3



6. FAQ


Q: Who we are?


A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.


Q:Can you offer design service?


A: Yes, we could design full solution drawings as per your requirements.


Q: How can I get the price


A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference.
