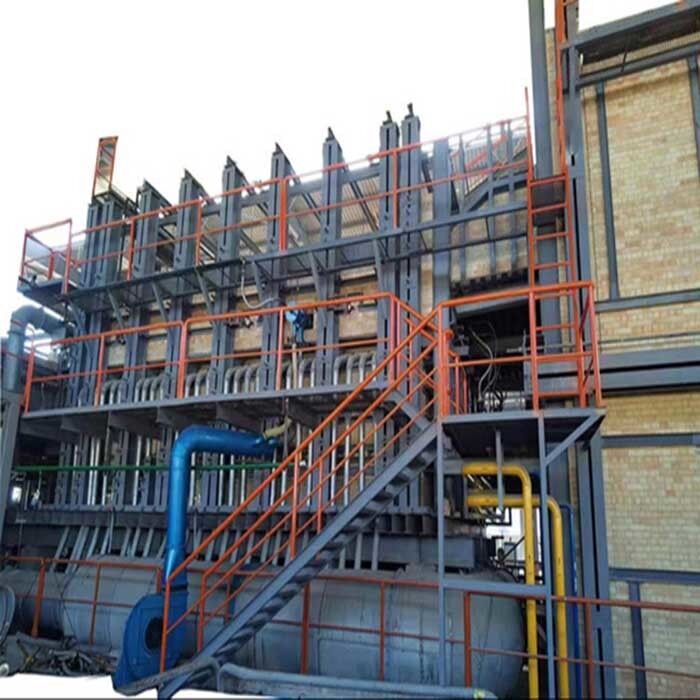

Heavy Oil Energy Glass Melting Machine Furnace Melter 50ton

Product Details

Place of Origin: Chongqing, China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: JEFFER-F

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case, tray, steel frame, etc

Delivery Time: 90 days after received the down payemnt

Payment Terms: T/T, L/C

Supply Ability: 1 set per 3 months

Get Best Price
Contact Now
Specifications
High Light:

Heavy Oil Energy glass melting machine

,

Glass Materials Melter 50ton

,

Borosilicate glass melting furnace

Capacity:
50ton
Material:
Electric Fused AZS , Silicate Brick, MS
Kind Of Glass:
Borosilicate
Color:
Flint
Operation Hour:
24 Hours
Kind Of Fuel:
Heavy Oil
Control Method:
DCS, PLC
Waranty:
One Year
Application:
Bowl, Dishes
After-salses Service:
Engineering Overeas Service Available
Capacity:
50ton
Material:
Electric Fused AZS , Silicate Brick, MS
Kind Of Glass:
Borosilicate
Color:
Flint
Operation Hour:
24 Hours
Kind Of Fuel:
Heavy Oil
Control Method:
DCS, PLC
Waranty:
One Year
Application:
Bowl, Dishes
After-salses Service:
Engineering Overeas Service Available
Description
Heavy Oil Energy Glass Melting Machine Furnace Melter 50ton

Heavy Oil Energy End Fired Furance Container Glass Materials Melter





1. Brief Description of Heavy Oil Energy End Fired Furance Container Glass Materials Melter



JEFFER Engineering has designed and supplied a variety of glass melting furnaces for the customers in China and aboard, ranging from the end fired furnace to the electric furnace; from very small scale pot furnace to large float glass furnace and constructions.



We use 3D modeling design, and combine the customer's product characteristics, site conditions and individual requirements to ensure the accuracy of the design, avoid rework and on-site adjustments.



Compared with the cross fired furnace with the same melting area, the end fired furnace has the advantages of high heat utilization rate, simple structure, small occupation area and low investment cost, easy operation and simply maintenance, etc.



The end fired furnace has a small flame coverage area, the flame reversing brings periodic temperature fluctuation and hot spot movement.

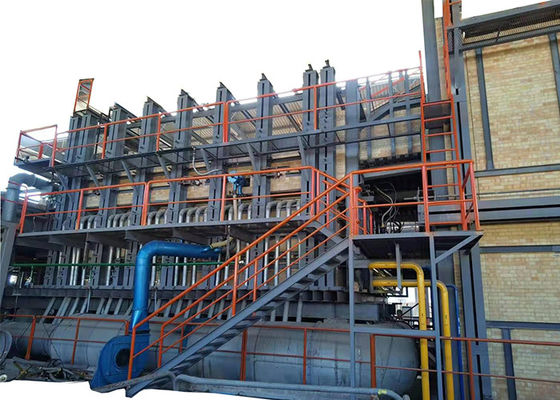

Heavy Oil Energy Glass Melting Machine Furnace Melter 50ton 0



2. Furnace Control



Item Description Specification
1 DCS Centralized management, decentralized control, with design ideas of "overview to details"
2 PLC Independent Section control by SCADA (Supervisory Control And Data Acquisition) control network system, i.e. dat acquisition and supervisory control system





Heavy Oil Energy Glass Melting Machine Furnace Melter 50ton 1




3. Furnace Structure

  • Glass melting section

It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank. The flame comes from the burner through the port, which feds in preheated air to increase the flame effiency.



  • Combustion air supply section

The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.



  • Dog house

Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.



  • Cooling section

It is a part for cooling and homogenization of the glass liquid, which is also an access for glass liquid distribution.



  • Waste heat recovery section

A waste heat recovery device is designed for improving the flame temperature of furnace, which could heat the combustion air and gas by using the waste heat and then to increase the flame temperature and save energy.





 4. Supply Scope



Item Description
1

Project consulting

2

Feasibility study and preliminary planning

3

Engineering design

4 Supply of equipment and materials
5 Supervision of furnace and equipment installation
6 Furnace heating up and insulation
7 Furnace and equipment commissioning
8 Training





6. Packing and Shipping


JEFFER has rich experiences on experiences of products packing , loading and delivery via various transportations.

  • Packed with Double Bister / Plastic Lorap and Rolled with Jute Rope on Pallet.
  • Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.
  • Fumigation package.
  • Shipping / Train / Express or unpon clients' demands



Heavy Oil Energy Glass Melting Machine Furnace Melter 50ton 2Heavy Oil Energy Glass Melting Machine Furnace Melter 50ton 3





7. FAQ



Q: Who we are?



A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.





Q:Can you offer design service?



A: Yes, we could design full solution drawings as per your requirements.





Q: Can you customize the products?

A: Yes, we have an experienced professional team ready to make design according to the requirement of customers.





Q: How can I get the price



A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference.
