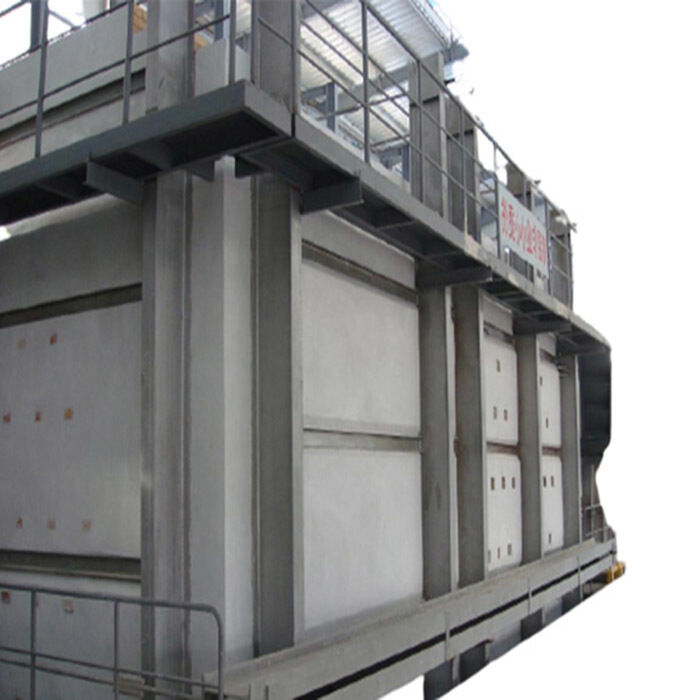

ODM OEM End Fired Furnace 100T Automotive Glass Melting Equipment

Product Details

Place of Origin: Chongqing, China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: JEFFER-F

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case, tray, steel frame, etc

Delivery Time: 90 days after received the down payemnt

Payment Terms: T/T, L/C

Supply Ability: 1 set per 3 months

Get Best Price
Contact Now
Specifications
High Light:

OEM End Fired Furnace

,

100T automotive glass furnace

,

100T glass melting equipment

Capacity:
100Ton
Material:
AZS, Silicate, Mullite
Kind Of Glass:
Soda-lime
Color:
Flint, Amber......
Condition:
New
Kind Of Fuel:
Natural Gas
Control Method:
DCS, PLC
Waranty:
One Year
Application:
Domestic Glass
After-salses Service:
Engineering Overeas Service Available
Capacity:
100Ton
Material:
AZS, Silicate, Mullite
Kind Of Glass:
Soda-lime
Color:
Flint, Amber......
Condition:
New
Kind Of Fuel:
Natural Gas
Control Method:
DCS, PLC
Waranty:
One Year
Application:
Domestic Glass
After-salses Service:
Engineering Overeas Service Available
Description
ODM OEM End Fired Furnace 100T Automotive Glass Melting Equipment

100T Daily Capacity Glass Liquid Melter End Fired Furnace Natural Gas Type





1. Brief Description of 100T Daily Capacity Glass Liquid Melter End Fired Furnace Natural Gas Type



JEFFER Engineering has designed and supplied a variety of glass melting furnaces for the customers in China and aboard, ranging from the end fired furnace to the electric furnace; from very small scale pot furnace to large float glass furnace and constructions.



The end fired furnace has a small flame coverage area, the flame reversing brings periodic temperature fluctuation and hot spot movement.



Compared with the cross fired furnace with the same melting area, the end fired furnace has the advantages of high heat utilization rate, simple structure, small occupation area and low investment cost, easy operation and simply maintenance, etc.



In addition, the number of port limits the furnace width and furnace scale. End fired furnace is suitable for making all kinds of hollow products (bottles, jars, vessels, chemical instruments, bubble shells, glass tubes, etc.), pressing products and glass balls without special requirement on the quality of glass.










ODM OEM End Fired Furnace 100T Automotive Glass Melting Equipment 0



2. Heating Energy of  End Fired Furnace

Item Description
1 Natural gas
2 Heavy oil
3 Coal gas
4 Light diesel oil for stand-by







ODM OEM End Fired Furnace 100T Automotive Glass Melting Equipment 1




3. Furnace Structure

  • Glass melting section

It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank. The flame comes from the burner through the port, which feds in preheated air to increase the flame effiency.



  • Combustion air supply section

The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.



  • Dog house

Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.



  • Cooling section

It is a part for cooling and homogenization of the glass liquid, which is also an access for glass liquid distribution.



  • Waste heat recovery section

A waste heat recovery device is designed for improving the flame temperature of furnace, which could heat the combustion air and gas by using the waste heat and then to increase the flame temperature and save energy.



  • Gas supply and waste gas exhaust

A gas supply and waste gas exhaust system is designed to ensure the continues, regular and efficient operation of the furnace, which includes double deck reversal unit, air and gas flue channel, middle flue channel, blower, main flue channel and chimney.





 4. Supply Equipment and Materials



Item Description
1

Refractory materials

2

Combustion equipment

3

Mechanical equipment

4 Electric equipment, Instrument, and automatic control equipment





5. Packing and Shipping


JEFFER has rich experiences on experiences of products packing , loading and delivery via various transportations.

  • Packed with Double Bister / Plastic Lorap and Rolled with Jute Rope on Pallet.
  • Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.
  • Fumigation package.
  • Shipping / Train / Express or unpon clients' demands



ODM OEM End Fired Furnace 100T Automotive Glass Melting Equipment 2ODM OEM End Fired Furnace 100T Automotive Glass Melting Equipment 3





6. FAQ



Q: Who we are?



A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.



Q:Can you offer design service?



A: Yes, we could design full solution drawings as per your requirements.



Q: How can I get the price



A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference.
