DCS PLC Control Industrial Combustion Systems Natural Gas Fired Furnace

Brand Name: JEFFER
Model Number: JEFFER-C-2
MOQ: 1 set
Price: Negotiable
Delivery Time: 90 days after received the down payment
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Chongqing, China
Certification:
ISO9001, ISO14001, ISO45001
Name Of Product:
Firing System
Combustion Fuel:
Dual Fuel
Frenquency:
50Hz
Weight:
500kg
Application Rage:
Furnace Firing
Certification:
ISO9001, ISO14001, ISO45001
Control System:
DCS,PLC
Model:
Customization
Waranty:
1 Year
Service:
Online/offline Support
Packaging Details:
Wooden casetray, steel frame, etc,
Supply Ability:
10 set per month
Highlight:

PLC Industrial Combustion Systems

,

industrial boiler burner DCS

,

natural gas fired furnace PLC

Product Description

Furnace Firing System Industrial Combustion System Heating Energy


1. Brief Introduction of Furnace Firing System Industrial Combustion System Heating Energy

The system has been applied to more than one hundred different furnaces, which can save 20%-35% in energy compared to the common combustion system.

The supply of natural gas is adjustd for every burner port by control valve, which can be controlled sepeartely.

All delivered utility stations of the combustion system are pre-assembled, tested and commissioning completed in JEFFER’s factory to reduce erection time on side and avoid misassemble to a minimum.

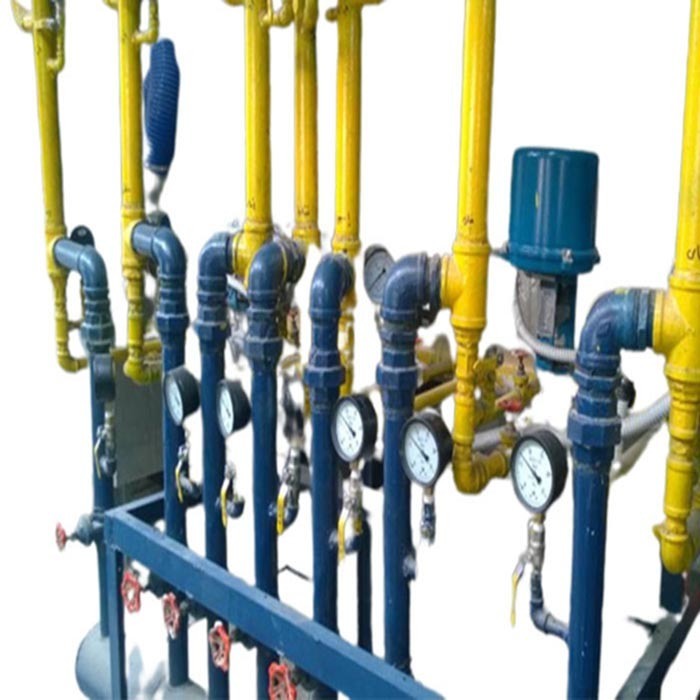

DCS PLC Control Industrial Combustion Systems Natural Gas Fired Furnace 0


2.  Technical Features


ItemDescription
1
  • Intelligent single combustion system
2
  • Multi-nozzle / Venturi tube mixture combustion technology
3
  • High automation control
4
  • Low energy consumption and long life technology
5
  • Low environmental impact



3. Combustion Air System

The combustion air supply system supplies air for natural gas combustion process, the air flows into the regenerator via the air reversal system.

The combustion air is preheated in the regeneartor before combined with natural gas.

It is high efficiency to recovery the waste heat, the combustion air can be preheated tMaterialo 1200~1350°C.

DCS PLC Control Industrial Combustion Systems Natural Gas Fired Furnace 1

Furnace combustion air system is including:


ItemDescription
1
  • Regenerator
2
  • Air reversal system
3
  • Combustion air blower / Combustion fan




3. Preheated air


ItemDescription
  • Consumption
 890.00Nm3/h
  • Thermal efficiency
 71%
  • Fume velocity
 0.32Nm/s
  • Air velocity
 0.28Nm/s



4. Main Equipment


ItemDescription
1
  • Burners
2
  • Combustion fan
3
  • Combustion skd

4

  • Control system
5
  • Air reversal system




5. Packing and Shipping


JEFFER has rich experiences on experiences of products packing , loading and delivery via various transportations.

  • Packed with Double Bister / Plastic Lorap and Rolled with Jute Rope on Pallet.
  • Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.
  • Fumigation package.
  • Shipping / Train / Express or unpon clients' demands


DCS PLC Control Industrial Combustion Systems Natural Gas Fired Furnace 2
7. FAQ
Q: Who we are?
A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.
Q: Can you customize the products?
A: Yes, we have an experienced professional team ready to make design according to the requirement of customers.
Q: Do you offer installation on site overseas?
A:Yes, we can provide our engineer to supervise the installation work on site or provide the the whole installation team on site to finish the project.
Q: Confidential protection provide?
A: Strict drawing management system eliminates the risk of the leakage and protects your interests.
