Small Scale Automatic Industrial Glass Furnace 50 Tons Capacity

Small Scale Automatic Industrial Glass Furnace 50 Tons Capacity

Small Scale Automatic Industrial Glass Furnace 50 Tons Capacity
video
Small Scale Automatic Industrial Glass Furnace 50 Tons Capacity
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 90 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 months
Contact Now
Detailed Product Description
Product: Industrial Glass Furnace Material: Mild Steel, Bricks
Kind Of Glass: Glass Product Type: Automatic Control
Condition: New Kind Of Fuel: Natural Gas
Capacity: 50 Tons Capacity Waranty: One Year
Application: Glass Industrial After-salses Service: Engineering Overeas Service Available
High Light:

Small Scale Industrial Glass Furnace

,

50 Tons Industrial Glass Furnace

,

50 Tons glassmaking furnace

Small Scale Automatic Industrial Glass Furnace 50 Tons Capacity



1. Industrial Glass Furnace Brief Description



Silicate forming



In this stage, the components of batched materials will produce a physicochemical solid phase reaction during heating process, in which the gaseous products will be released from the batched materials and produce a new opacity sinter ultimately, which is formed by silicate and SiO2.



Glass liquid forming



In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles. However, its chemical components and character are not even.



Clearing



The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.



Homogenization



The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole. The temperature of homogenization can be lower than the clearing stage.

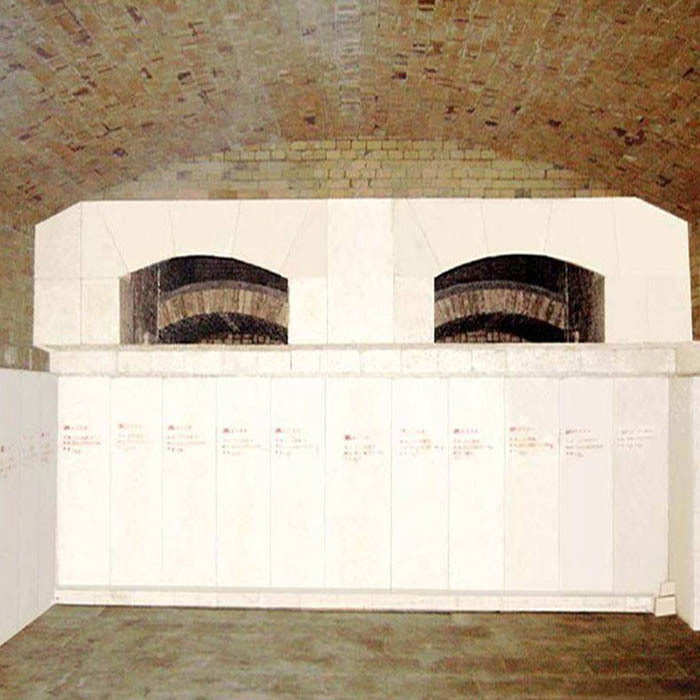

Small Scale Automatic Industrial Glass Furnace 50 Tons Capacity 0



2. Type of Industrial Glass Furnace


Capacity



Small scale furnace Daily furnace capacity: below 50tons
Medium scale furnace Daily furnace capacity: 50tons~150tons
Large scale furnace Daily furnace capacity: 150tons plus





Heating source


Fired furnace

The combustion fuel can be natural gas, heavy oil, diesel oil…… for this kind of furnace.

Electric furnace

Electricity is the fuel for this kind of furnace.

Fired-electric furnace

This kind of furnace is mainly using combustion fuel, electricity is used as a supplementary heating source.





 3. Industrial Glass Furnace structure



According to current fired furnace structure, it is mainly divided into four parts:

  • Glass melting section
  • Heat source supply section
  • Waste heat recovery section
  • Gas supply and waste gas exhaust



Melting section:



It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank. The flame comes from the burner through the port, which feds in preheated air

to increase the flame effiency.





Pre-combustion room



After the air and gas flow out from the access, under the airflow vortex motion, and molecule diffusion and collision, the air and gas will mix before flowing into the furnace.





 4. Furnace melting technology system



Reasonable melting technology is a system which could ensure a normal daily production. It will have an important function for high production, high quality, low consumption and furnace campaign.



Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.



Temperature



The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.



Pressure



Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.



Bubbling



Stable shape and position of bubble are an important sign to estimate the melting performance, which will also affect the production capacity of furnace and quality of glass liquid.
