180tpd Dolomite Float Glass Production Line Low Power Consumption

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: Customization

Price: Negotiable

Packaging Details: Suitable packing for multi-transportation

Delivery Time: 180 days after receiving the down payment

Payment Terms: T/T, L/C

Supply Ability: 2 sets per annually

Get Best Price
Contact Now
Specifications
High Light:

Dolomite Float Glass Production Line

,

180tpd Float Glass Production Line

,

180tpd float glass making machine

Name:
Float Glass Production Line
Raw Material:
Silica Sand, Soda Ash, Etc.
Condition:
New
Capacity:
180tpd
Enviroment:
Little Affect To The Enviroment
Advantage:
Low Power Consumption
Name:
Float Glass Production Line
Raw Material:
Silica Sand, Soda Ash, Etc.
Condition:
New
Capacity:
180tpd
Enviroment:
Little Affect To The Enviroment
Advantage:
Low Power Consumption
Description
180tpd Dolomite Float Glass Production Line Low Power Consumption

180tpd Dolomite Float Glass Production Line Low Power Consumption



1. Brief Description



This Float Glass Production Line save labor and increases productivity

Machine size can be customized.


2. Characteristic

  • High-Quality Flat Glass—no brush line/uniformity thickness/surface flatness/parallel
  • Low power consumption for unit product
  • High production usage
  • Easy to achieve mechanization, automation,


3. Scope of Supply

  • Raw material treatment system
  • Internal and external cullet system
  • Glass furnace
  • Tin bath
  • Cold end device
  • Utlity equipemnt
  • Auto control system


4. Raw Materials

Main materials are mainly including:


Silica Sand
Dolomite
Limestone
Feldspar
Soda Ash
Salt Cake
Cullet




5. Technical Flow Chart of Float Glass Line


180tpd Dolomite Float Glass Production Line Low Power Consumption 0





6. Main Equipment Description


6.1 Batch Plant

For batching and mixing the raw materials.


6.2 Furance

The melting tank is key part of glass production line, the refractory materials quality is very important.


6.3​ Tin Bath


Glass liquid float on the metallic tin, through stretching, forming, polishing and cooling processing, a qualified glass plate is formed and its temperature reduces around 600°C, the transition roller will send the plate to annealing lehr.




6.4.Protection Gas Station


The protection gas station shall operate continuously to produce and supply the required gas for tin bath.



In order to overcome the air and oxygen brought through the entering of the glass liquid and inert gas itself, a center percentage of hydrogen gas shall be added into nitrogen gas.



Besides the good melting efficient, the bright and clean surface of metallic tin is also another important key to produce good float glass product, So, an inert gas or reducing gas to be adopted for a kind of protection gas to prevent the tin from oxidized.




6.5. Annealing Lehr


In glass technology, annealing means to put the glass into the annealing lehr for a certain time or reduce the temperature with a slow speed, so as to no additional permanent stress or temporary stress will produce. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.



The purpose of glass annealing is to eliminate the internal residual stress and optical heterogeneity of float glass in order to stabilize the internal structure of glass.

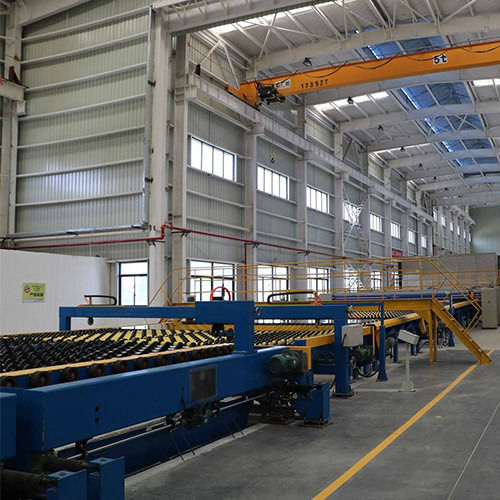

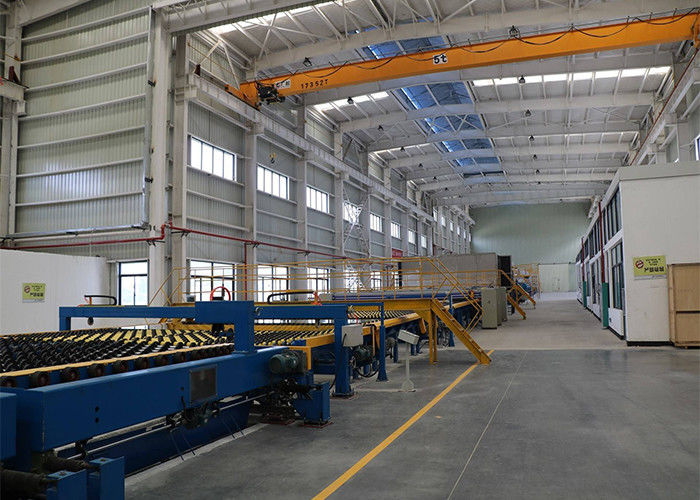

6.6. Colde-end



180tpd Dolomite Float Glass Production Line Low Power Consumption 1

180tpd Dolomite Float Glass Production Line Low Power Consumption 2
