300tpd Building Construction Glass Float Glass Production Line 5mm Refractory Materials

300tpd Building Construction Glass Float Glass Production Line 5mm Refractory Materials

300tpd Building Construction Glass Float Glass Production Line 5mm Refractory Materials
video
300tpd Building Construction Glass Float Glass Production Line 5mm Refractory Materials
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customization
Payment & Shipping Terms:
Minimum Order Quantity: Customization
Price: Negotiable
Packaging Details: Suitable packing for multi-transportation
Delivery Time: 180 days after receiving the down payment
Payment Terms: T/T, L/C
Supply Ability: 2 sets per annually
Contact Now
Detailed Product Description
Name Of Product: Float Glass Capacity: 300tpd
Thickness: 4-12mm Color: Flint
Material: Refractory Materials, MS Application: Construction
Voltage: 380V Condition: New
Waranty: One Year Service: Engineers Available To Service Overseas
High Light:

300tpd Building Construction Float Glass

,

Refractory materials Float Glass line

,

5mm Float Glass Production Line

Building Construction Glass Float Glass Production Line Clear Glass Plate





1. Brief Description



The name of float glass is because of the glass liquid floating and forming on a metallic tin liquid surface. By using this forming method, it is not need to overcome the gravity of the glass, it can enlarge the width of the glass, improve the speed of stretch, and increase the capacity and scale of production.



Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.





2. Characteristic



Because the glass liquid forms on the metallic tin liquid surface, it could achieve a high grade double faced fired polishing glass surface. The parallelism and flatness of float glass are as better as mechanical polishing effect, but it has a better mechanical capacity and chemical stability than mechanical polishing glass.





3. Scope of Supply



Item Description
1 Melting furnace
2 Tin batch
3 Annealing lehr
4 Cold-end equipment
5 Cullet return system
6 Shielding gas mixing station





4. Raw Materials



Main materials are mainly including:



Silica Sand
Dolomite
Limestone
Feldspar
Soda Ash
Salt Cake
Cullet





Auxiliary materials as the important raw materials, it mainly includes:

Clarify Agent
Coloring Agent
Decolorizing Agent
Oxidizing Agent
Reducing Agent
Combustion Agent







5.  Technical Flow Chart of Float Glass Line





300tpd Building Construction Glass Float Glass Production Line 5mm Refractory Materials 0





6. Main Equipment Description





6.1 Batch Plant



For batching and mixing the raw materials.

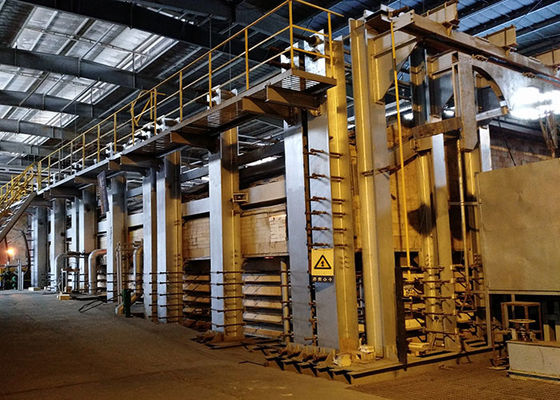

6.2 Furance



The melting tank is key part of glass production line, the refractory materials quality is very important.





6.3​ Tin Bath


Glass liquid float on the metallic tin, through stretching, forming, polishing and cooling processing, a qualified glass plate is formed and its temperature reduces around 600°C, the transition roller will send the plate to annealing lehr.





6.4.Protection Gas Station



The protection gas station shall operate continuously to produce and supply the required gas for tin bath.



Tin is easy to reaction with oxygen, sulfur under high temperature and form an oxide, its oxide (SnO2, SnO) will seriously pollute the glass liquid, this will affect the quality of the glass.



In the upper space of tin bath, it must be full filled with a protection gas.


Normally, Nitrogen gas (N2) and Hydrogen gas (H2) gas are to be used as protection gas. Which is mainly for preventing or reducing the oxidation of metallic tin liquid.



6.5. Annealing Lehr


In glass technology, annealing means to put the glass into the annealing lehr for a certain time or reduce the temperature with a slow speed, so as to no additional permanent stress or temporary stress will produce. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.





6.6. Colde-end



It mainly divides into three sections for cold-end part in float glass production line. Details are following:
  • Inspection and pretreatment section
  • Cutting and break section
  • Stacker and packing section



300tpd Building Construction Glass Float Glass Production Line 5mm Refractory Materials 1





7. FAQ



Q: Who we are?

A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.



Q:Can you offer design service?

A: Yes, we could design full solution drawings as per your requirements.



Q: How can I get the price

A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference.



Q: Which shipment is available?
A: By sea, by air, by rail or as your requirement.
