Product Details
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001， ISO14001， ISO45001
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 90 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 months
Capacity: |
8 Tpd |
Material: |
Fused AZS, Silica Brick |
Kind Of Glass: |
Soda-lime |
Color: |
Flint |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Auto Control |
Waranty: |
One Year |
Application: |
Glass Industry |
After-salses Service: |
Engineering Overeas Service Available |
Capacity: |
8 Tpd |
Material: |
Fused AZS, Silica Brick |
Kind Of Glass: |
Soda-lime |
Color: |
Flint |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Auto Control |
Waranty: |
One Year |
Application: |
Glass Industry |
After-salses Service: |
Engineering Overeas Service Available |
8tpd, Glass Furnace, Recuperative Furnace, Perfume Bottle Making
1. Brief Description
Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.
Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.
Recuperative furnace, with a narrow melting tank, is using a steel recuperator to pre-heat the combustion air.
Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.
| Item | Description |
| 1 | Characteristic of raw materials |
| 2 | Chemical component of batched materials |
| 3 | Material feeding method |
| 4 | Melting temperature |
2. Advantage
| Item | Description |
| 1 | Stable flame |
| 2 | No reversal |
| 3 | Small footprint |
| 4 | Lower investment |

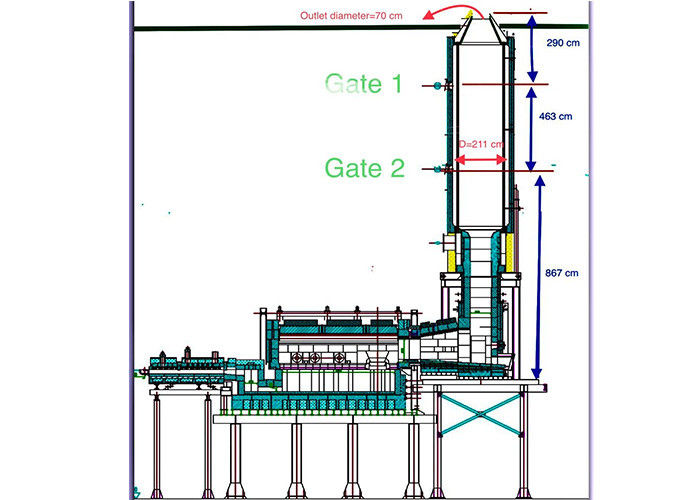

3. Furnace structure
It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank.
Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.
The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator.
The flame goes out from the burner port. The shape, size and length of burner port will have a big effect for the speed, thickness, width and direction of the flame.
A gas supply and waste gas exhaust system is designed to ensure the continues, regular and efficient operation of the furnace, which includes double deck reversal unit, air and gas flue channel, middle flue channel, blower, main flue channel and chimney.
4. Furnace melting technology system
Reasonable melting technology is a system which could ensure a normal daily production. It will have an important function for high production, high quality, low consumption and life span of furnace.
Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.
The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.
Normal temperature measuring points:
