2000mm 100tpd Sheet Glass Making Machine For Construction

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wood case, tray, steel frame......

Delivery Time: 120 days after receiving the down payment

Payment Terms: T/T, L/C

Supply Ability: 1 sets per 4 months

Get Best Price
Contact Now
Specifications
High Light:

100tpd Sheet Glass Making Machine

,

2000mm glass maker machine

,

2000mm Sheet Glass Making Machine

Name Of Product:
Sheet Glass
Application:
Construction
Raw Material:
Silica Sand, Soda Ash
Condition:
New
Capacity:
100tpd
Voltage:
380V
Dimension:
Customized
Warranty:
1 Year
Service:
Engineer Oversea Service Avaliable
Name Of Product:
Sheet Glass
Application:
Construction
Raw Material:
Silica Sand, Soda Ash
Condition:
New
Capacity:
100tpd
Voltage:
380V
Dimension:
Customized
Warranty:
1 Year
Service:
Engineer Oversea Service Avaliable
Description
2000mm 100tpd Sheet Glass Making Machine For Construction





2000mm Width, 100 Ton Per Day, Sheet Glass Making Machine For Construction​





1. Brief Description


Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.



Production process of sheet glass was created by Belgium Glaverbel Company in 1961.  Under this kind of process, it can achieve a glass thickness from 0.8mm to 12mm.



The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.



Physicochemical changes in each glass melting stage:
  • Silicate forming
In this stage, the components of batched materials will produce a physicochemical solid phase reaction during heating process, in which the gaseous products will be released from the batched materials and produce a new opacity sinter ultimately, which is formed by silicate and SiO2.
  • Glass liquid forming
In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles. However, its chemical components and character are not even.
  • Clearing
The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.
  • Homogenization
The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole. The temperature of homogenization can be lower than the clearing stage.


2. Characteristic



Item Description
1 Long-term stable production of thin glass under 3mm.
2 Good flatness
3 Small variation in thickness
4 Excellent product quality




3. Scope of Supply

  • Raw material treatment system
  • Internal and external cullet system
  • Glass furnace
  • Forming device
  • Cold end device
  • Utlity equipemnt
  • Auto control system


4. Raw Materials

Main materials are mainly including:


Silica Sand
Dolomite
Limestone
Feldspar
Soda Ash
Salt Cake
Cullet





5. Main Equipment Description


  • Batch Plant

For batching and mixing the raw materials.


  • Furance

The melting tank is key part of glass production line, the refractory materials quality is very important.


  • Forming

Compared with the float glass process, the sheet glass is combined with slotless process and horizontal stretching process, forming the glass liquid by slotless tank and stretching rotation method.



  • Annealing Lehr

In glass technology, annealing means to put the glass into the annealing lehr for a certain time or reduce the temperature with a slow speed, so as to no additional permanent stress or temporary stress will produce. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.




6. Application

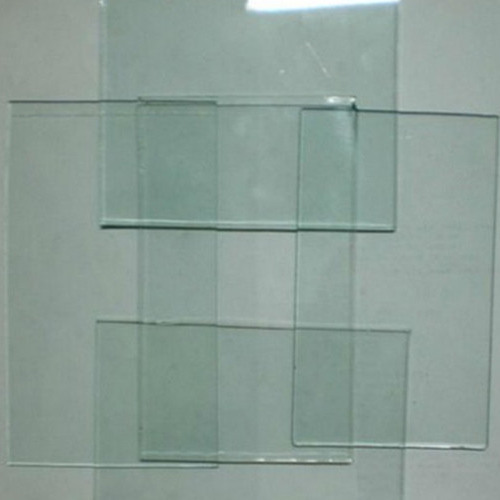

This type of ultrathin glass is mainly used for instrument, electrics and crafts manufacturing.
