Deep Plate Calcite 10 Inch Glass Processing Plant

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customized

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wood case, tray, steel frame........

Delivery Time: 90 days after received the down payment

Payment Terms: T/T, L/C

Supply Ability: 1 set per 3 month

Get Best Price
Contact Now
Specifications
High Light:

ISO45001 Calcite Glass Processing Plant

,

10Inch glass production machinery

,

JEFFER Glass Processing Plant

Material:
Silica Sand
Color:
White
Size:
Customized
Application:
Domestic Glass
Shape:
Round
Votalge:
380V
Condition:
New
Capacity:
Customized
Warranty:
1 Year
Service:
Engineer Overseas Service Available
Material:
Silica Sand
Color:
White
Size:
Customized
Application:
Domestic Glass
Shape:
Round
Votalge:
380V
Condition:
New
Capacity:
Customized
Warranty:
1 Year
Service:
Engineer Overseas Service Available
Description

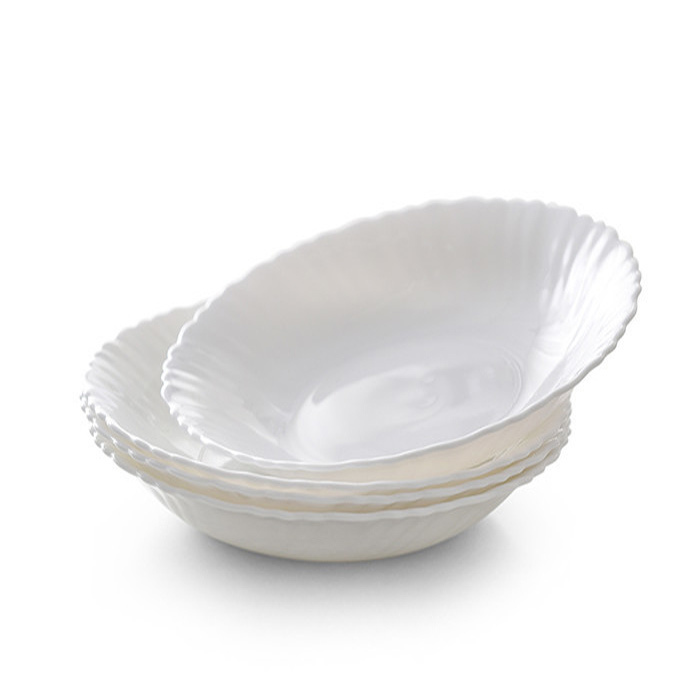

Deep Plate Calcite 10 Inch Glass Processing Plant

Deep Plate, White Glass Plate, 10 Inch, Glass Processing Plant





1. Brief introduction


Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.



Opal glass is a kind of glass material formed by opactifying effection produced from tiny particle in fluoride via light scatting effect.



At present, the opal glass is a regularly used glass product in daily life.





2. Advantage



  • Increase the strength and thermal impacting property of the glass product.
  • Increase the decoration apperance of the glass product.



3. Materials of opal glass


Stable chemical components in the raw materials are very important, especially the content of fluor and sodium fluosilicated, which will affect the opacifying effect.



To produce high quality product of opal glass, a high quality of silica sand shall be reqruied. The main materials to produce opal glass are below,



Item Description
1 Silica sand
2 Aluminium hydroxide / Feldspar
3 Fluor / sodium fluosilicated
4 Calcite / limestone





Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.



The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.

Physicochemical changes in each glass melting stage:

1. Silicate forming
In this stage, the components of batched materials will produce a physicochemical solid phase reaction during heating process, in which the gaseous products will be released from the batched materials and produce a new opacity sinter ultimately, which is formed by silicate and SiO2.

2. Glass liquid forming
In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles. However, its chemical components and character are not even.

3. Clearing
The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.

4. Homogenization
The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole. The temperature of homogenization can be lower than the clearing stage.



4. Main equipment of forming device

  • Gob Feeder / Serve Gob Feeder

Shear angle:adjustable between RH30°- LH 90°
Available for S.G, D.G and T.G.



  • Press machine

Use continue cam in different section.
Pneumatic mold clamping, usually use 5 bar compressor air for stronger clamping the mold.



  • Transfer ware

Transfer ware is designed for conveying the glass product from I.S.machine or press machine to cross conveyor in front of the annealing lehr quickly and stably, which is especially applicable to high-speed glass production line.



  • Cross Conveyor

Cross conveyor is installed in front of annealing lehr for cross conveying the glass product and works with stacker to push them into annealing lehr.



  • Stacker

Stacker is used for pushing the glass product from the cross conveyor into annealing lehr. Pushing speed is adjusted by inverter, quantity of pushing numbers is controlled by digital counters.



  • Annealing lehr

Annealing lehr can be continuous annealing of tableware, bottles, cans, and other glass products.



  • Packing devices

Different kinds of packing devices could meet different packing types of different kinds of domestic glass products.
