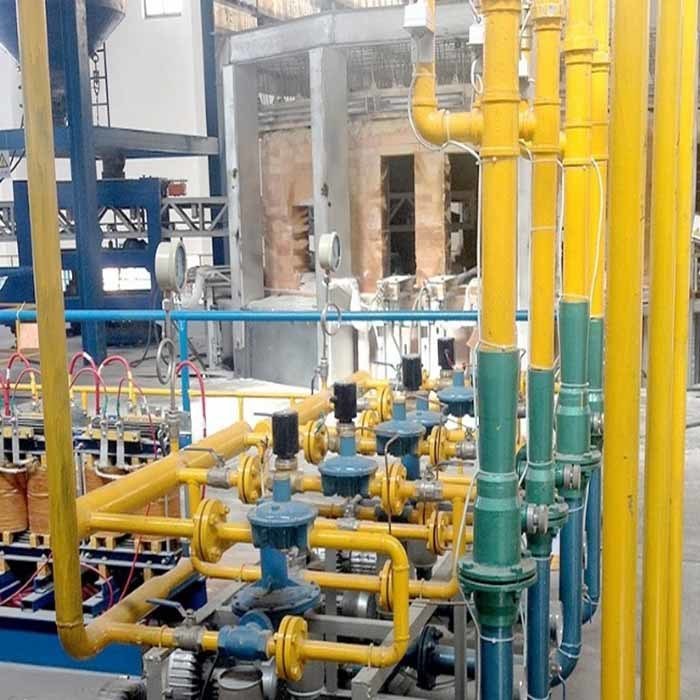

50Hz 380V Gas Burner Industrial Combustion Air System

Brand Name:	JEFFER
Model Number:	Customized
MOQ:	1 set
Price:	Negotiable
Delivery Time:	60 days fater received the down payment
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, ISO45001

Application:

Glass Industry

Material:

Mild Steel

Burner:

Gas Burner

Voltage:

380V

Frequency:

50Hz

Fuel Type:

Natural Gas

Condition:

New

Service:

Engineer Service Overseas Available

Warranty:

1 Year

Testing:

Tested Before Delivery

Packaging Details:

Wooden case, steel frame, tray........

Supply Ability:

1 set per 2 months

Highlight:

380V Industrial Combustion Systems

ISO9001 Furnace Heating Device

ISO9001 Industrial Combustion Systems

Product Description

Gas Burner, Industrial Combustion System, Furnace Heating Device

1. Brief introduction

The process of reaction is the oxidation reaction between fuel and combustion air, which will be finished instantaneously. The other two processes take a longer time. The fuel process and flame characteristic are determined by the mixing process, which is also determined by the temperature distribution and process requirement of the furnace.

No matter gas combustion or oil combustion, when the fuel goes into the combustion room, the fuel combustion process can be divided into three basic ones:

Fuel mixes with combustion air.
The temperature of mixture of fuel and combustion air raises up to ignition point.

2. Combustion air system

Regenerator is widely used to preheat the combustion air.

It is high efficiency to recovery the waste heat, the combustion air can be preheated to 1200~1350°C.

Furnace combustion air system is including:

Item	Description
1	Regenerator
2	Manual valve
3	Combustion air blower / Combustion fan

3. Double deck reversing unit

Double deck reversing unit is including:

Actuator
Slide valve
Damper

3. Preheated air

Item	Description
Consumption	890.00Nm3/h
Thermal efficiency	71%
Fume velocity	0.32Nm/s
Air velocity	0.28Nm/s
