Small Capacity Raw Material Treatment 50Hz Automatic Batch Plant

Brand Name:	JEFFER
Model Number:	Customized
MOQ:	1 set
Price:	Negotiable
Delivery Time:	60 days after received the down payemnt
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, ISO45001

Application:

Glass Industry

Treated Raw Materials:

Silica Sand, Fedlspar

Condition:

New

Place Of Origin:

China

Voltage:

380V, 50Hz

Mixer Volume:

Accordingly

Warranty:

1 Year

Motor Power:

Accordingly

Material:

Mild Steel

After-sales Service:

Engineer Oversea Service Available

Packaging Details:

Wooden case, steel frame, tray......

Supply Ability:

1 set per 2 months

Highlight:

ISO45001 fedlspar automatic batch plant

50Hz Glass Batch Plant

50Hz automatic batch plant

Product Description

Small Capacity, Raw Material treament, Glass Batch Plant, Economic Design

1. Raw materials preteatment

In order to improve the production efficiency, if the granularity composition of raw materials can not meet the physical-chemical properties and processing property of glass product, the raw materials will be required to be pretreated before batching.

2. Main type of raw materials

Silica Sand
Feldspar
Dolomite
Limestone
Soda Ash

3. Types of auxiliary materials

Item	Description
1	Clarifying agent
2	Decolorizing agent
3	Coloring agent
4	Oxidizing agent
5	Cosolvent agent
6	Reducing agent

4. Arrangmment type of batch plant

In-Line type

Silos arrange on one line.
The materials convey to mixer by belt conveyor after discharge from the scale hopper.

Tower-type

Mixer, scales and silos are vertically arranged.
The scales are connected with the mixer directly.

5. Material feeding device

Hopper
Pneumatic hammer
Sensors
Material discharging device
Instrument and control system

6. Material device

Mixer

Material unloading door	Discharge the materials from the mixer
Stirring tank	Stirring and mixing the raw materials in batch
Water adding device	Help the mixing more uniformly
Turboprop device	Drive of stirring
Lubrication device	Provide the lubrication oil to reducer

Conveyor device for batch plant

Conveyor belt

Materil: Rubber belt

Joint: Vulcanization connection

Driving device

An open-type driving device consists with motor, high-speed coupling, reducer with backstop, low-speed coupling.

Bucket elevator

Bucket elevator has a characteristic of large conveying capacity, high lifting height, stable operation and long life span.

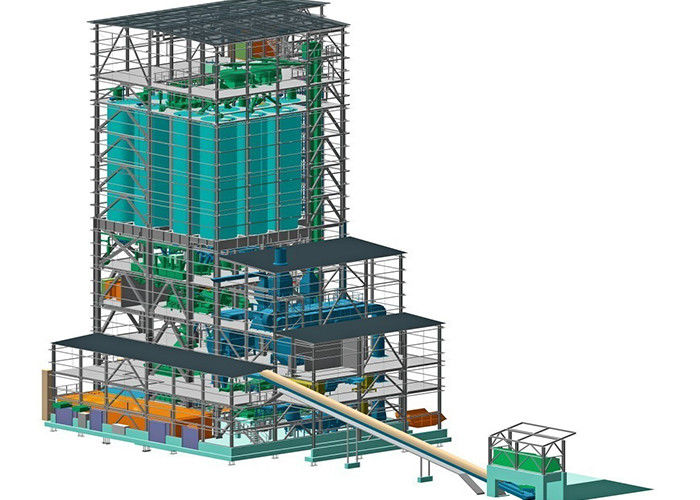

Small Capacity Raw Material Treatment 50Hz Automatic Batch Plant 0
