300 TPD Cross Fired Furnace,
300 TPD glass melting furnace,
ISO14001 Cross Fired Furnace

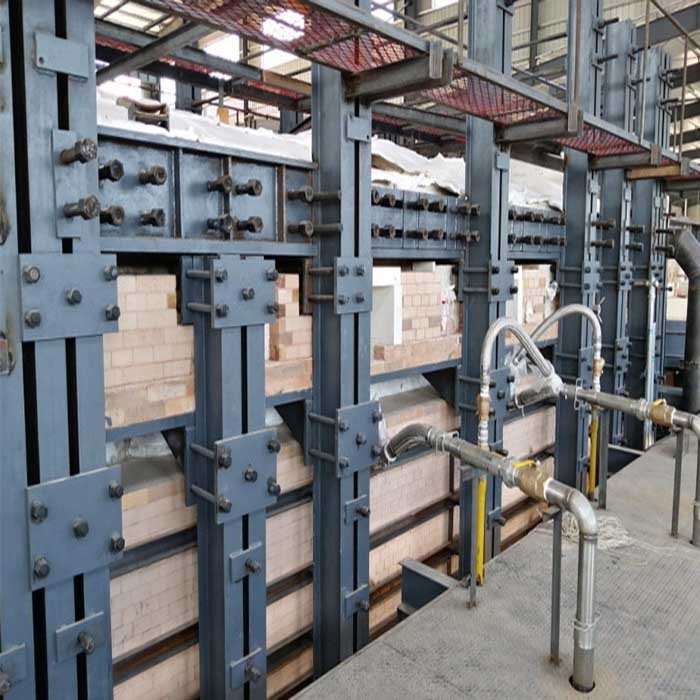

Glass Melter, With Daily Capacity Over 300 Ton Per Day, Cross Fired Furnace
1. Brief Introduction
Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.
The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.
The direction of flames of a cross fired furnace is from one side to the other side, which is across the width of the furnace and perpendicular with the flow direction of glass liquid.
2. Structure of furance
|8||Double deck reversing unit|
|9||Waste heat treatment system|
3. Main component
The dimension of batch charging area is determined by the different size of furnace and batching methods.
The melting tank is combined with melting area and clearing area.
The regenerator as a waste heat recovery device, the combustion air flows through the regenerator, after preheated, it will arrive at the furnace through the port.
It is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the
waste gas out.
After a period of heating, the double deck reversing unit will change the flow direction of waste gas and combustion air.
