Glass Melting Heavy Oil 250TPD Cross Fired Furnace

Glass Melting Heavy Oil 250TPD Cross Fired Furnace

  • Glass Melting Heavy Oil 250TPD Cross Fired Furnace
  • Glass Melting Heavy Oil 250TPD Cross Fired Furnace
Glass Melting Heavy Oil 250TPD Cross Fired Furnace
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, steel frame
Delivery Time: 180 days after received the down payment
Payment Terms: T/T, L/C
Supply Ability: 1 set per 6 month
Contact Now
Detailed Product Description
Condition: New Voltage: 380V, 50Hz
Dimension: Customized Application: Glass Melting
Products: Various Waranty: One Year
Type: Cross Fired Furnace Fuel Type: Heavy Oil
Color: Customized After-sales: Engineers Available To Service Machinery Overseas
High Light:

250TPD Cross Fired Furnace


250TPD Glass Furnace


250TPD Heavy Oil Cross Fired Furnace

Cross Fired Furnace, Glass Furnace, Over 250 Ton Per Day, Heavy Oil Fuel



1. Brief Introduction


Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.


Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.


The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.


The direction of flames of a cross fired furnace is from one side to the other side, which is across the width of the furnace and perpendicular with the flow direction of glass liquid.

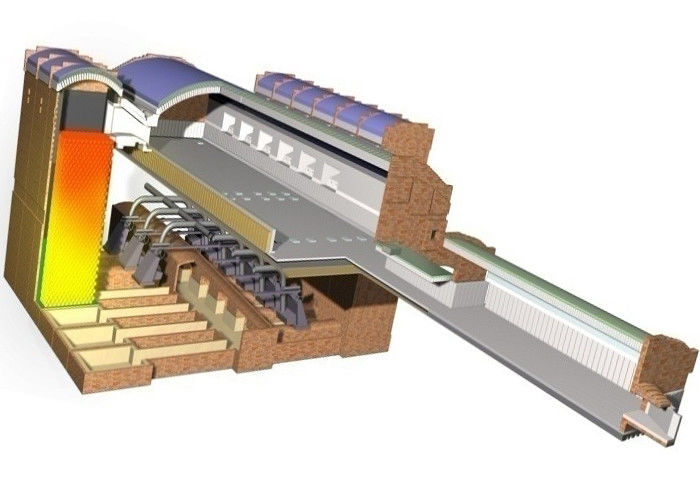

Glass Melting Heavy Oil 250TPD Cross Fired Furnace 0


2. Feature



1 High productivity
2 Longitudinal temperature adjustable
3 Low dust content in waste gas



3. Structure of furance


1 Melting section
2 Breast wall
3 Crown
4 Port
5 Regenerator
6 Cooling section
7 Flue channel
8 Double deck reversing unit
9 Waste heat treatment system


4. Main component


  • Batch charging

The dimension of batch charging area is determined by the different size of furnace and batching methods.

  • Melting tank

The melting tank is combined with melting area and clearing area.


  • Regenerator

The regenerator as a waste heat recovery device, the combustion air flows through the regenerator, after preheated, it will arrive at the furnace through the port.


  • Port

It is an important part of furnace, it is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the waste gas out.


  • Double deck reversing unit

After a period of heating, the double deck reversing unit will change the flow direction of waste gas and combustion air.
