ISO45001 Cross Fired Furnace

ISO45001 Cross Fired Furnace

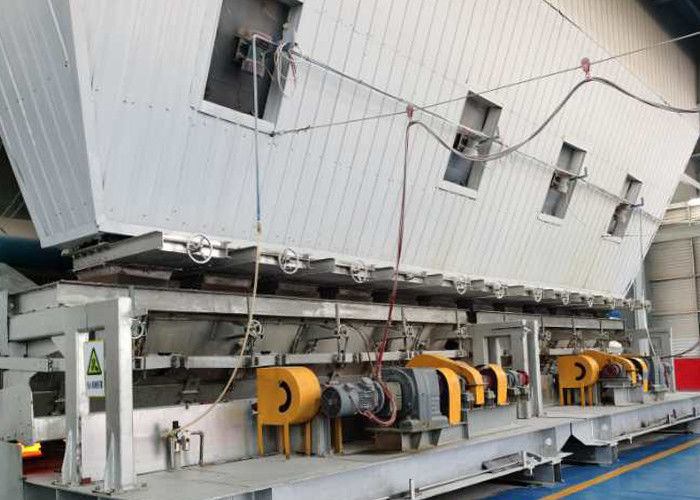

ISO45001 Cross Fired Furnace ISO45001 Cross Fired Furnace

Large Image :  ISO45001 Cross Fired Furnace

Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, steel frame
Delivery Time: 180 days after received the down payment
Payment Terms: T/T, L/C
Supply Ability: 1 set per 6 month
Detailed Product Description
Condition: New Voltage: 380V, 50Hz
Dimension: Customized Application: Glass Melting
Products: Various Waranty: One Year
Type: Cross Fired Furnace Fuel Type: Gas
Color: Customized After-sales: Engineers Available To Service Machinery Overseas
High Light:

50Hz Cross Fired Furnace


ISO45001 glass melting furnace


ISO45001 Cross Fired Furnace

Big Capacity, Cross Fired Furnace, Glass Furnace, With Natural Gas Combustion



1. Brief Introduction


Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.


Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.


The direction of flames of a cross fired furnace is from one side to the other side, which is across the width of the furnace and perpendicular with the flow direction of glass liquid.


ISO45001 Cross Fired Furnace 0


2. Feature



1 High productivity
2 Longitudinal temperature adjustable
3 Low dust content in waste gas



3. Main component


  • Batch charging

The dimension of batch charging area is determined by the different size of furnace and batching methods.

  • Melting tank

The melting tank is combined with melting area and clearing area.


  • Regenerator

The regenerator as a waste heat recovery device, the combustion air flows through the regenerator, after preheated, it will arrive at the furnace through the port.


  • Port

It is an important part of furnace, it is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the waste gas out.


  • Double deck reversing unit

After a period of heating, the double deck reversing unit will change the flow direction of waste gas and combustion air.
