Mild Steel Small Flint 50tpd ISO9001 Tank Furnace Glass Melting

Mild Steel Small Flint 50tpd ISO9001 Tank Furnace Glass Melting

  • Mild Steel Small Flint 50tpd ISO9001 Tank Furnace Glass Melting
Mild Steel Small Flint 50tpd ISO9001 Tank Furnace Glass Melting
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 90 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 months
Contact Now
Detailed Product Description
Capacity: Below 50 Ton Per Day Material: Mild Steel
Kind Of Glass: Soda-lime Color: Flint
Condition: New Kind Of Fuel: Natural Gas
Consumption: Energy Saving Waranty: One Year
Application: Glass Industry After-salses Service: Engineering Overeas Service Available
High Light:

50tpd Tank Furnace Glass Melting


ISO9001 tank furnace glass melting


ISO9001 glass melting furnaces

Small Size, Economic Glass Melting Furnace, Supervision Service



1. Brief Description


Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.


Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.


The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.


Physicochemical changes in each glass melting stage:


  • Silicate forming
  • Glass liquid forming
  • Clearing
  • Homogenization


Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.


Technical process of glass

Mild Steel Small Flint 50tpd ISO9001 Tank Furnace Glass Melting 0


2. Type of Furnace



Small scale furnace Daily furnace capacity: below 50tons
Medium scale furnace Daily furnace capacity: 50tons~150tons
Large scale furnace Daily furnace capacity: 150tons plus





Flat glass furnace For float glass, sheet glass and figured glass production line.
Domestic glass furnace For container glass, tableware glass, tube glass, etc production line.




 3. Furnace structure


According to current fired furnace structure, it is mainly divided into four parts:

  • Glass melting section
  • Heat source supply section
  • Waste heat recovery section
  • Gas supply and waste gas exhaust

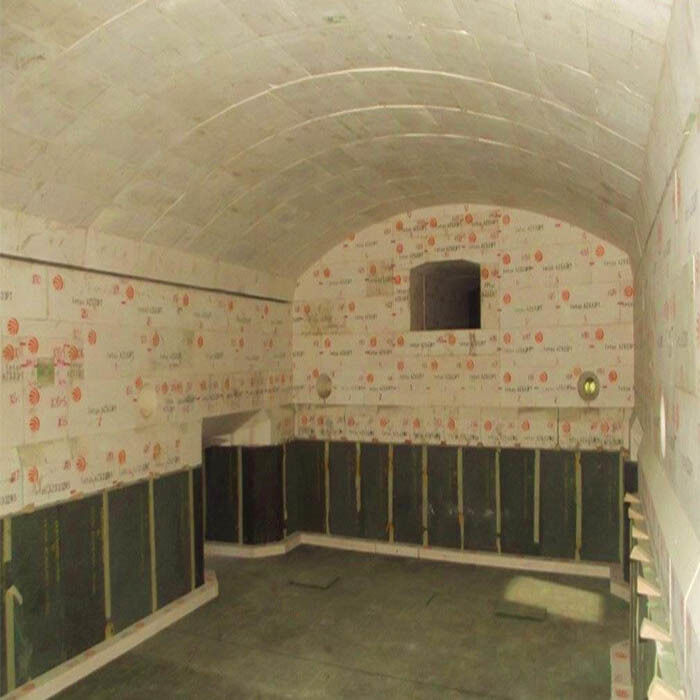

Melting section


It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank.


The flame comes from the burner through the port, which feds in preheated air to increase the flame effiency.


Dog house


Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.


Cooling section


It is a part for cooling and homogenization of the glass liquid, which is also an access for glass liquid distribution.


Mild Steel Small Flint 50tpd ISO9001 Tank Furnace Glass Melting 1


 4. Furnace melting technology system


Reasonable melting technology is a system which could ensure a normal daily production. It will have an important function for high production, high quality, low consumption and furnace campaign.


Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.





The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.





Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.





Stable shape and position of bubble are an important sign to estimate the melting performance, which will also affect the production capacity of furnace and quality of glass liquid.
