Product Details
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001， ISO14001， ISO45001
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 90 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 months
Capacity: |
Customized |
Material: |
Mild Steel |
Kind Of Glass: |
Soda-lime |
Color: |
Flint |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Energy Saving |
Waranty: |
One Year |
Application: |
Bottle Glass |
After-salses Service: |
Engineering Overeas Service Available |
Capacity: |
Customized |
Material: |
Mild Steel |
Kind Of Glass: |
Soda-lime |
Color: |
Flint |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Energy Saving |
Waranty: |
One Year |
Application: |
Bottle Glass |
After-salses Service: |
Engineering Overeas Service Available |
Domestic Glass Melting Furnace Manufacture, Processing, Construction
1. Brief Description
Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.
The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.
Physicochemical changes in each glass melting stage:
Silicate forming
In this stage, the components of batched materials will produce a physicochemical solid phase reaction during heating process, in which the gaseous products will be released from the batched materials and produce a new opacity sinter ultimately, which is formed by silicate and SiO2.
Glass liquid forming
In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles. However, its chemical components and character are not even.
Clearing
The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.
Homogenization
The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole. The temperature of homogenization can be lower than the clearing stage.
Capacity
| Small scale furnace | Daily furnace capacity: below 50tons |
| Medium scale furnace | Daily furnace capacity: 50tons~150tons |
| Large scale furnace | Daily furnace capacity: 150tons plus |
|
Fired furnace |
The combustion fuel can be natural gas, heavy oil, diesel oil…… for this kind of furnace. |
|
Electric furnace |
Electricity is the fuel for this kind of furnace. |
|
Fired-electric furnace |
This kind of furnace is mainly using combustion fuel, electricity is used as a supplementary heating source. |
Product
| Flat glass furnace | For float glass, sheet glass and figured glass production line. |
| Domestic glass furnace | For container glass, tableware glass, tube glass, etc production line. |
3. Furnace structure
According to current fired furnace structure, it is mainly divided into four parts:
4. Furnace melting technology system
Reasonable melting technology is a system which could ensure a normal daily production. It will have an important function for high production, high quality, low consumption and furnace campaign.

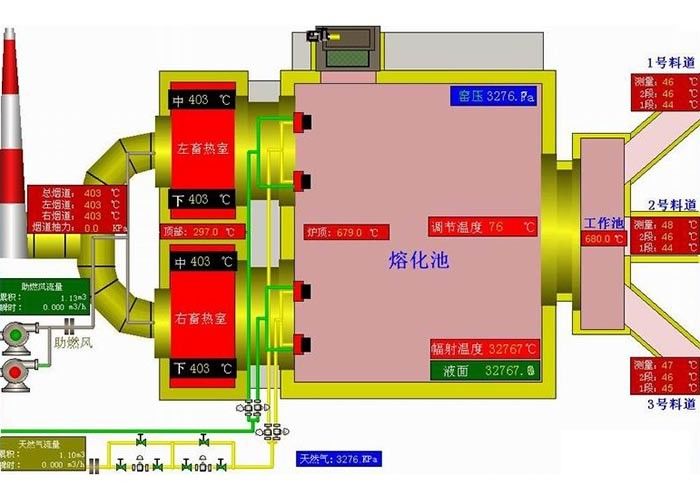

Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.
Temperature
The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.
Pressure
Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.
Bubbling
Stable shape and position of bubble are an important sign to estimate the melting performance, which will also affect the production capacity of furnace and quality of glass liquid.
