Product Details
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001， ISO14001， ISO45001
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 90 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 months
Capacity: |
Customized |
Material: |
Refractory Materials |
Kind Of Glass: |
Soda-lime |
Type: |
Automatic Control |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Energy Saving |
Waranty: |
One Year |
Application: |
Glass Industrial |
After-salses Service: |
Engineering Overeas Service Available |
Capacity: |
Customized |
Material: |
Refractory Materials |
Kind Of Glass: |
Soda-lime |
Type: |
Automatic Control |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Energy Saving |
Waranty: |
One Year |
Application: |
Glass Industrial |
After-salses Service: |
Engineering Overeas Service Available |
30 Ton Per Day Glass Industry Engineering, Melting Furance Design
1. Brief Description
Glass was used for windows and doors by the Ancient Romans as early as the 4th century.
Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.
Physicochemical changes in each glass melting stage:
Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.
Capacity
| Small scale furnace | Daily furnace capacity: below 50tons |
| Medium scale furnace | Daily furnace capacity: 50tons~150tons |
| Large scale furnace | Daily furnace capacity: 150tons plus |
|
Fired furnace |
The combustion fuel can be natural gas, heavy oil, diesel oil…… for this kind of furnace. |
|
Electric furnace |
Electricity is the fuel for this kind of furnace. |
|
Fired-electric furnace |
This kind of furnace is mainly using combustion fuel, electricity is used as a supplementary heating source. |
Flue gas waste heat recovery

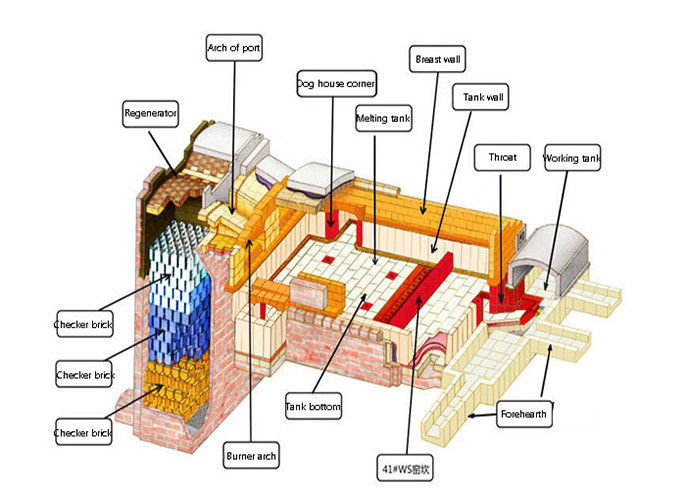

3. Furnace structure
According to current fired furnace structure, it is mainly divided into four parts:
Melting section:
It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank. The flame comes from the burner through the port, which feds in preheated air
to increase the flame effiency.
Cooling section
It is a part for cooling and homogenization of the glass liquid, which is also an access for glass liquid distribution.
Air, gas access
The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.
4. Furnace melting technology system
Reasonable melting technology is a system which could ensure a normal daily production. It will have an important function for high production, high quality, low consumption and furnace campaign.
Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.
5. Packing and transportation of furnace equipment and devices
Video
