Flint 400 Tpd ISO14001 Float Glass Production Line

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: Customization

Price: Negotiable

Packaging Details: Suitable packing for multi-transportation

Delivery Time: 180 days after receiving the down payment

Payment Terms: T/T, L/C

Supply Ability: 2 sets per annually

Get Best Price
Contact Now
Specifications
High Light:

ISO14001 Float Glass Production Line

,

ISO14001 float glass machine

,

400 tpd Float Glass Production Line

Name Of Product:
Float Glass
Capacity:
180-400 Tpd
Waranty:
1 Year
Color:
Flint
Thickness:
2mm-12
After-sales Service:
Engineers Available To Service Overseas
Name Of Product:
Float Glass
Capacity:
180-400 Tpd
Waranty:
1 Year
Color:
Flint
Thickness:
2mm-12
After-sales Service:
Engineers Available To Service Overseas
Description
Flint 400 Tpd ISO14001 Float Glass Production Line

Clean Float Glass Prduction Line With Machinery Of Batch Plant, Furnace, Tin Batch​



1. Brief Description

The name of float glass is because of the glass liquid floating and forming on a metallic tin liquid surface. By using this forming method, it is not need to overcome the gravity of the glass, it can enlarge the width of the glass, improve the speed of stretch, and increase the capacity and scale of production.
The float glass has a flatness surface, excellent optical performance, no distortions, due to its good quality, the yield float glass can be used for deep processing fabrication.

2. Characteristic

Because the glass liquid forms on the metallic tin liquid surface, it could achieve a high grade double faced fired polishing glass surface. The parallelism and flatness of float glass are as better as mechanical polishing effect, but it has a better mechanical capacity and chemical stability than mechanical polishing glass.


3. Thickness and Application


ItemThicknessApplication
12mm, 3mm, 4mm, 5mm, 6mmConstruction
Automobile
22mm, 3mm, 5mm, 6mmMirror
38mm, 10mmConstruction
412mmConstruction
515mmConstruction
619mmConstruction


4. Raw Materials

Main materials are mainly including:


Silica Sand
Dolomite
Limestone
Feldspar
Soda Ash
Salt Cake
Cullet



5.  Technical Flow Chart of Float Glass Line

Flint 400 Tpd ISO14001 Float Glass Production Line 0

6. Main Equipment Description


6.1 Batch Plant

For batching and mixing the raw materials.


6.2 Furance

The melting tank is key part of glass production line, the refractory materials quality is very important.

6.3​ Tin Bath

Glass liquid float on the metallic tin, through stretching, forming, polishing and cooling processing, a qualified glass plate is formed and its temperature reduces around 600°C, the transition roller will send the plate to annealing lehr.
6.4.Protection Gas Station
In order to overcome the air and oxygen brought through the entering of the glass liquid and inert gas itself, a center percentage of hydrogen gas shall be added into nitrogen gas.

Nitrogen gas, a kind of colorless and odorless gas, which is a main component of protection gas, with a dissociation states in nature. An inert gas as nitrogen gas, it can not combust in air nor dissolve in water, which can prevent the oxidization of metallic tin, and no reaction between nitrogen gas and metallic tin.

Hydrogen gas is a lightest, colorless and odorless combustion gas, mainly existing under compound state. It is a strong reducing agent, with min viscosity, high conductivity and strong chemical activity, which can have chemical reaction with many materials to produce various kinds of hydride.
Basic Physical and Chemical Characters of Nitrogen and Hydrogen Gas

Nitrogen gas:


Molecular Mass28.02
Density under standard state1.251 kg/m3
Critical PropertyTemperature-149.1°C
Pressure3.39 MPa
Density310.96 kg/m3
Boiling Point-195.8 °C
Specific Heat CapacityCp1.047 kJ/kg·°C
Cv0.745 kJ/kg·°C
Thermal Conductivity0.233 W/m·k


Hydrogen gas:


Molecular Mass2.02
Density under standard state0.090 kg/m3
Critical PropertyTemperature-239.9°C
Pressure1.30 MPa
Density31 kg/m3
Boiling Point-252.2 °C
Specific Heat CapacityCp12.269 kJ/kg·°C
Cv10.132 kJ/kg·°C
Thermal Conductivity9.469 W/m·k


6.5. Annealing Lehr
In glass technology, annealing means to put the glass into the annealing lehr for a certain time or reduce the temperature with a slow speed, so as to no additional permanent stress or temporary stress will produce. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.



The purpose of glass annealing is to eliminate the internal residual stress and optical heterogeneity of float glass in order to stabilize the internal structure of glass.

There are two main processes of float glass annealing:
1. Weaken and eliminate the internal stress.
2. Prevent internal stress from producing.



6.6. Colde-end


It mainly divides into three sections for cold-end part in float glass production line. Details are following:
  • Inspection and pretreatment section
  • Cutting and break section

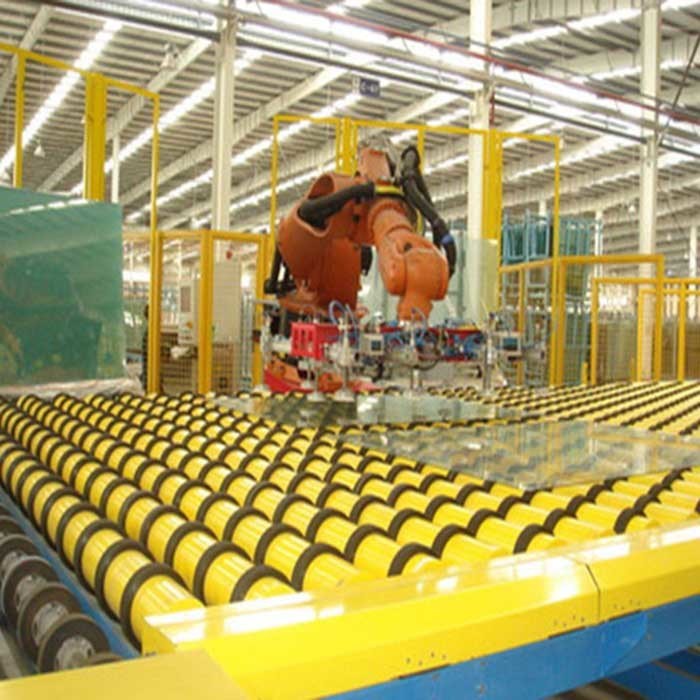

  • Stacker and packing section
