ISO9001 6mm 30000Kg Float Glass Production Line

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: Customization

Price: Negotiable

Packaging Details: Suitable packing for multi-transportation

Delivery Time: 180 days after receiving the down payment

Payment Terms: T/T, L/C

Supply Ability: 2 sets per annually

Get Best Price
Contact Now
Specifications
High Light:

ISO9001 Float Glass Production Line

,

ISO 9001 glass forming machine

,

30000Kg Float Glass Production Line

Name Of Product:
Flat Glass
Capacity:
300tpd
Waranty:
1 Year
Voltage:
380V
Weight:
5000-30000Kg
Thickness:
2,4,6,8,10mm
Name Of Product:
Flat Glass
Capacity:
300tpd
Waranty:
1 Year
Voltage:
380V
Weight:
5000-30000Kg
Thickness:
2,4,6,8,10mm
Description
ISO9001 6mm 30000Kg Float Glass Production Line

2-10 mm Thick, Construction Clean Float Glass Processing Treatment Equipment







1. Brief Description




In 1965, China started to research and develop its own float glass technology and successfully put into production and exported the float glass products and technology to the world.



Nowadays, the international glass new technology is developing in the fields of energy, materials, environmental protection, information, biology. Developing new technology by changing the external and internal performance of glass product, it allows the glass product having excellent function of strength, energy saving, thermal insulation, fire resistance, sunlight protective......etc.



The float glass has a flatness surface, excellent optical performance, no distortions, due to its good quality, the yield float glass can be used for deep processing fabrication.





2. Characteristic



Because the glass liquid forms on the metallic tin liquid surface, it could achieve a high grade double faced fired polishing glass surface. The parallelism and flatness of float glass are as better as mechanical polishing effect, but it has a better mechanical capacity and chemical stability than mechanical polishing glass.





3. Thickness and Application



Item Thickness Application
1 2mm, 3mm, 4mm, 5mm, 6mm Construction
Automobile
2 2mm, 3mm, 5mm, 6mm Mirror
3 8mm, 10mm Construction
4 12mm Construction
5 15mm Construction
6 19mm Construction





4. Raw Materials



Main materials are mainly including:



Silica Sand
Dolomite
Limestone
Feldspar
Soda Ash
Salt Cake
Cullet





Auxiliary materials as the important raw materials, it mainly includes:



Clarify Agent
Coloring Agent
Decolorizing Agent
Oxidizing Agent
Reducing Agent
Combustion Agent







5.  Technical Flow Chart of Float Glass Line





ISO9001 6mm 30000Kg Float Glass Production Line 0





6. Main Equipment Description





6.1 Batch Plant



For batching and mixing the raw materials.





6.2 Furance



The melting tank is key part of glass production line, the refractory materials quality is very important.





6.3​ Tin Bath


Glass liquid float on the metallic tin, through stretching, forming, polishing and cooling processing, a qualified glass plate is formed and its temperature reduces around 600°C, the transition roller will send the plate to annealing lehr.





6.4.Protection Gas Station



The protection gas station shall operate continuously to produce and supply the required gas for tin bath.



Tin is easy to reaction with oxygen, sulfur under high temperature and form an oxide, its oxide (SnO2, SnO) will seriously pollute the glass liquid, this will affect the quality of the glass.


Normally, Nitrogen gas (N2) and Hydrogen gas (H2) gas are to be used as protection gas. Which is mainly for preventing or reducing the oxidation of metallic tin liquid.




In order to overcome the air and oxygen brought through the entering of the glass liquid and inert gas itself, a center percentage of hydrogen gas shall be added into nitrogen gas.





6.5. Annealing Lehr


In glass technology, annealing means to put the glass into the annealing lehr for a certain time or reduce the temperature with a slow speed, so as to no additional permanent stress or temporary stress will produce. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.



When the heat treatment of glass is under taking between normal temperature and softening temperature, the structure and property of glass will change obviously, such as stress, phase splitting, devitrification, etc.

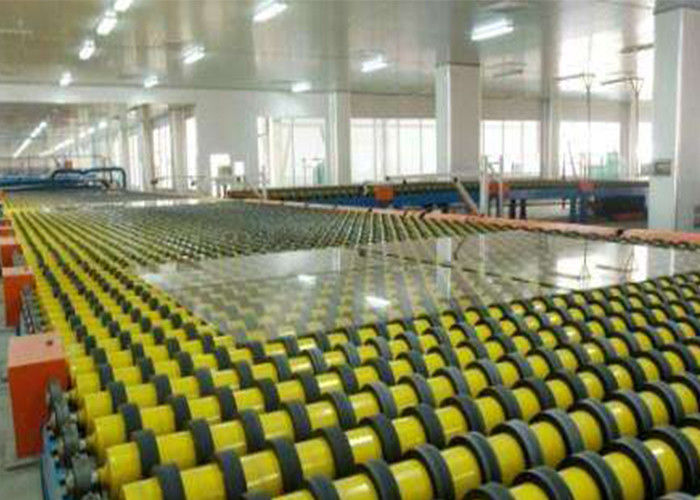

6.6. Colde-end



It mainly divides into three sections for cold-end part in float glass production line. Details are following:
  • Inspection and pretreatment section
  • Cutting and break section
  • Stacker and packing section




ISO9001 6mm 30000Kg Float Glass Production Line 1
