|Place of Origin:||China|
|Certification:||ISO9001, ISO90014, ISO45001|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case, steel frame|
|Delivery Time:||150 days after received the down payment|
|Payment Terms:||T/T, L/C|
|Supply Ability:||1 set per 5 month|
|Material:||Mild Steel||Voltage:||380V, 50Hz|
|Application:||Manufacture Industry||Product:||Glass Product|
|Raw Material:||Silic Sand||Waranty:||One Year|
|Energy:||Natural Gas||Color Of Product:||Customized|
|Service:||Engineers Available To Service Machinery Overseas||Training:||Available|
Silic Sand End Fired Furnace 380V,
End Fired Furnace With Regnerator,
Mild Steel 50Hz End Fired Furnace

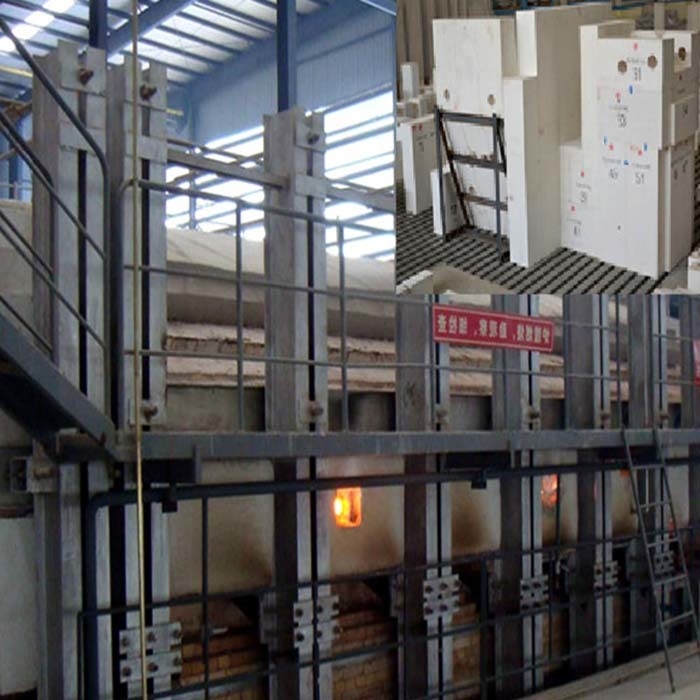

Glass Melting Furnace, End Fired Furnace With Regnerator For Waste Gas Recycle
1. Brief Description
A glass melting furnace is a melting device, the most necessary and important equipment in the glass industry.
End-fired furnaces are named according to the longitudinal arrangement of the burner ports and the U-shape of the flame combustion path. At present, the application of end-fired furnaces in the glass industry is more extensive.
Glass melting is the most important process in glass production. It is a forming process that uniformly forms batches of materials into qualified liquid without bubbles under high temperature heating.
|2||High efficiency of heat utilization|
|3||Low energy consumption|
|5||Smal foot print|
3. Factors that influence the melting effects
|1||Characteristic of raw materials|
|3||Material feeding method|
4. Main sections of furnace
Usually, the radius of the working tank is equal to the width of the melting tank, and the depth of the working tank is 300mm-400mm less than that of the melting tank.
Under normal circumstances, the temperature of the kennel is about 1100°C~1400°C. The ingredient material will be pre-melted in this section.
It is an important part of the furnace, where the fuel mixes with the preheated air, and it is the channel through which the preheated air enters the furnace and exits the exhaust.
The flame space is a space combined with parapets, vaults, and front and rear gables. The fuel should burn completely within the flame space to ensure sufficient heat for raw material melting and cleaning.
The throat is the core part of the furnace, which will affect the quality of the glass and the operation of the furnace. As the glass flows through the throat, its temperature decreases.
The regenerator heats the combustion air with the help of checker bricks from the exhaust gases from the furnace. It not only utilizes the waste heat of the gas, but also heats the combustion air to a higher temperature, which helps to increase the operating temperature. Exhaust gases can escape and combustion air can enter the channels.
