DCS PLC End Fired Furnaces Container Refractory Materials

Product Details

Place of Origin: Chongqing, China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: JEFFER-F

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case, tray, steel frame, etc

Delivery Time: 90 days after received the down payemnt

Payment Terms: T/T, L/C

Supply Ability: 1 set per 3 months

Get Best Price
Contact Now
Specifications
High Light:

PLC End Fired Furnaces

,

End Fired Furnace Refractory materials

,

DCS End Fired Furance Container

Capacity:
120t
Material:
Electric Fused AZS , Silicate
Kind Of Glass:
Soda-lime
Color:
Green, Clear, Amber.....
Condition:
New
Kind Of Fuel:
Heavy Oil
Control Method:
DCS, PLC
Application:
Glass Containers
Waranty:
One Year
After-salses Service:
Engineering Overeas Service Available
Capacity:
120t
Material:
Electric Fused AZS , Silicate
Kind Of Glass:
Soda-lime
Color:
Green, Clear, Amber.....
Condition:
New
Kind Of Fuel:
Heavy Oil
Control Method:
DCS, PLC
Application:
Glass Containers
Waranty:
One Year
After-salses Service:
Engineering Overeas Service Available
Description
DCS PLC End Fired Furnaces Container Refractory Materials

Heavy Oil Heating Type End Fired Furance Container Glass Melting Device





1. Brief Description of Heavy Oil Heating Type End Fired Furance Container Glass Melting Device



JEFFER Engineering has designed and supplied a variety of glass melting furnaces for the customers in China and aboard, ranging from the end fired furnace to the electric furnace; from very small scale pot furnace to large float glass furnace and constructions.



We use 3D modeling design, and combine the customer's product characteristics, site conditions and individual requirements to ensure the accuracy of the design, avoid rework and on-site adjustments.



The flame coverage area of the end combustion furnace is small, and the flame reversal brings about periodic temperature fluctuation and hot spot movement.
In addition, the number of ports limits furnace width and furnace size. The end burning furnace is suitable for manufacturing various hollow products (bottles, cans, containers, chemical instruments, bubble shells, glass tubes, etc.), pressed products and glass balls without special requirements for glass quality.

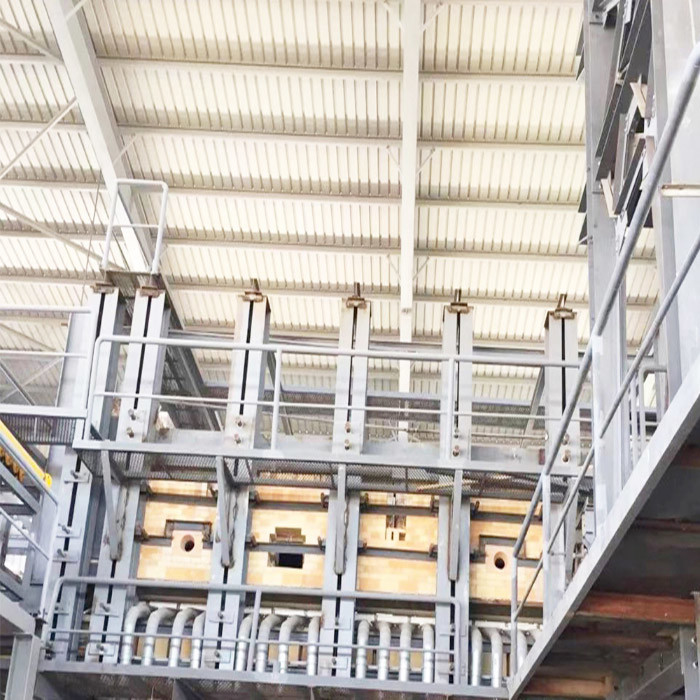

DCS PLC End Fired Furnaces Container Refractory Materials 0



2. Heating Energy of  End Fired Furnace

Item Description
1 Natural gas
2 Heavy oil
3 Coal gas
4 Light diesel oil for stand-by







DCS PLC End Fired Furnaces Container Refractory Materials 1




3. Furnace Structure

  • Glass melting section

It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank. The flame comes from the burner through the port, which feds in preheated air to increase the flame effiency.



  • Combustion air supply section

The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.



  • Dog house

Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.



  • Cooling section

It is a part for cooling and homogenization of the glass liquid, which is also an access for glass liquid distribution.



  • Waste heat recovery section

A waste heat recovery device is designed for improving the flame temperature of furnace, which could heat the combustion air and gas by using the waste heat and then to increase the flame temperature and save energy.





 4. Supply Equipment and Materials



Item Description
1

Refractory materials

2

Combustion equipment

3

Mechanical equipment

4 Electric equipment, Instrument, and automatic control equipment





5. Furnace Control



Item Description Specification
1 DCS Centralized management, decentralized control, with design ideas of "overview to details"
2 PLC Independent Section control by SCADA (Supervisory Control And Data Acquisition) control network system, i.e. dat acquisition and supervisory control system





6. Packing and Shipping


JEFFER has rich experiences on experiences of products packing , loading and delivery via various transportations.

  • Packed with Double Bister / Plastic Lorap and Rolled with Jute Rope on Pallet.
  • Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.
  • Fumigation package.
  • Shipping / Train / Express or unpon clients' demands



DCS PLC End Fired Furnaces Container Refractory Materials 2DCS PLC End Fired Furnaces Container Refractory Materials 3





7. FAQ



Q: Who we are?



A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.





Q:Can you offer design service?



A: Yes, we could design full solution drawings as per your requirements.





Q: Can you customize the products?

A: Yes, we have an experienced professional team ready to make design according to the requirement of customers.





Q: How can I get the price



A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference.
