Large Scale 4mm-12mm Float Glass Production Line 300tpd Capacity

Large Scale 4mm-12mm Float Glass Production Line 300tpd Capacity

1. Brief Description

Float Glass is widely used in Courtyard, Leisure Facilities, Supermarket, Farmhouse, Laundry, Workshop, Kitchen, School, Bathroom, Bedroom, Exterior, Dining, Warehouse, Home Office, Staircase, Outdoor, Living Room, Park, Office Building, Storage & Closet, Gym, Mall, Apartment, Sports Venues, Basement, Hospital, Hotel, Home Bar, Hall

2. Characteristic

Because the glass liquid forms on the metallic tin liquid surface, it could achieve a high grade double faced fired polishing glass surface. The parallelism and flatness of float glass are as better as mechanical polishing effect, but it has a better mechanical capacity and chemical stability than mechanical polishing glass.

3. Scope of Supply

4. Raw Materials

Main materials are mainly including:

Auxiliary materials as the important raw materials, it mainly includes:

5.  Technical Flow Chart of Float Glass Line

6. Main Equipment Description

6.1 Batch Plant

For batching and mixing the raw materials.

6.2 Furance

The melting tank is key part of glass production line, the refractory materials quality is very important.

6.3​ Tin Bath

Glass liquid float on the metallic tin, through stretching, forming, polishing and cooling processing, a qualified glass plate is formed and its temperature reduces around 600°C, the transition roller will send the plate to annealing lehr.

6.4.Protection Gas Station

The protection gas station shall operate continuously to produce and supply the required gas for tin bath.

Tin is easy to reaction with oxygen, sulfur under high temperature and form an oxide, its oxide (SnO2, SnO) will seriously pollute the glass liquid, this will affect the quality of the glass.

In the upper space of tin bath, it must be full filled with a protection gas.

Normally, Nitrogen gas (N2) and Hydrogen gas (H2) gas are to be used as protection gas. Which is mainly for preventing or reducing the oxidation of metallic tin liquid.

6.5. Annealing Lehr

In glass technology, annealing means to put the glass into the annealing lehr for a certain time or reduce the temperature with a slow speed, so as to no additional permanent stress or temporary stress will produce. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.

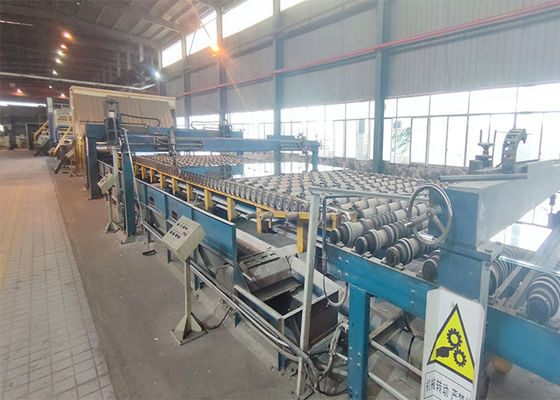

6.6. Colde-end

• Inspection and pretreatment section
• Cutting and break section
• Stacker and packing section

7. FAQ

Q: Who we are?

A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.

Q:Can you offer design service?

A: Yes, we could design full solution drawings as per your requirements.

Q: How can I get the price

A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference.

Q: Which shipment is available?
A: By sea, by air, by rail or as your requirement.
