Small Capacity Soda Lime Glass Melting Machine Impotant Device

Small Capacity Soda Lime Glass Melting Machine Impotant Device

  • Small Capacity Soda Lime Glass Melting Machine Impotant Device
  • Small Capacity Soda Lime Glass Melting Machine Impotant Device
Small Capacity Soda Lime Glass Melting Machine Impotant Device
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: Customized Product
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 150 days after receiving the down payment
Payment Terms: T/T, L/C
Supply Ability: 1 set per 2 - 3 months
Contact Now
Detailed Product Description
Name Of Product: Electric Furnace Material: Fused AZS, Silica Brick, Insulation Brick
Capacity: 5 Ton Application: Glass Production Industry
Color Of Product: Opal Warranty: 1 Year
Kind Of Glass: Soda-lime Glass Condition: New
Voltage: 380V Frenquency: 50Hz
High Light:

Soda Lime Glass Melting Machine


Small Capacity Glass Melting Machine


Small Capacity electric glass melting furnace

Small Capacity Eletric Glass Furnace Impotant Device Of Glass Melting Machine



1. Brief Description


Glass is an electric conductor under high temperature. There are alkali metal and potassium ions in melted glass liquid. These two ions have conductivity, when the electricity through the glass liquid, the joule heat will be produced, if there is enough calories produced, it can melt the glass, which is called “Glass Electric Melting”.


The electric furnace has a compact structure using electricity as fuel, nearly zero emissions of NOx and CO2, which is good for environmental protection.


Electric furnace can be used in areas where electricity cost is economic and stable supply, environmental protection requirements are strict, or in factories where glass contains high volatile components.


The electric furnace is mainly suitable to produce high-quality, small output or glass products that are difficult to produce by normal furnace, such as fluorine glass, lead glass (for example crystal glass), phosphate glass, borosilicate glass, etc.

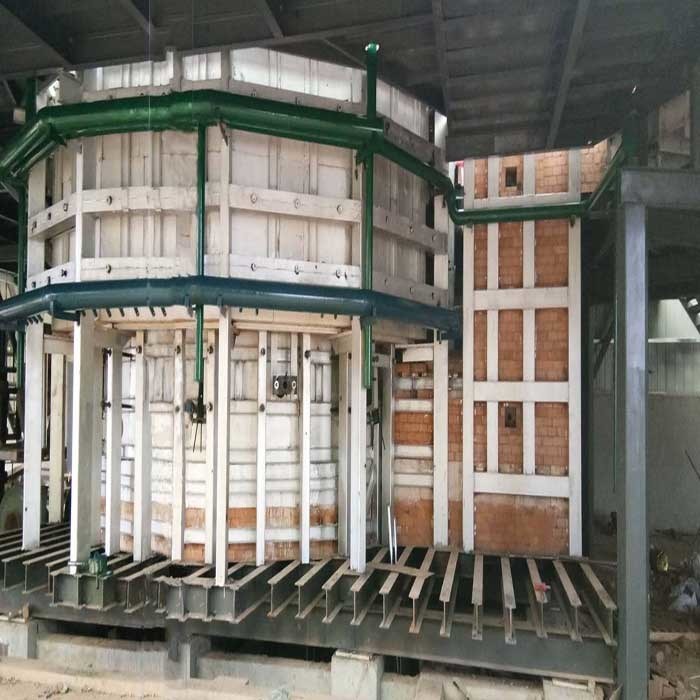

Small Capacity Soda Lime Glass Melting Machine Impotant Device 0


2.  Advantages of the electric melting:


Item Description
1 High thermal efficiency, up to 80%-85%
2 More engergy saving
3 Small footprint
4 Simple structure
5 No pollution
6 Lower noise level
7 Less maintenance cost



3. Melting Section of Electric Furnace

Using cooling top vertical melting type theory, which will concentrate the melting process. The design of melting area is benefited for glass melting and homogenization, no death zone in melting scope, that will ensure the melting efficiency of glass materials and clarification, producing high quality glass liquid.



4. Techncial Advantages


Item Description
1 3D modeling design
2 Single/double/multi pass regenerator
3 Chimney located at the top of regenerator
4 Unique port structure
5 Deep refining technology
6 Unique throat cooling structure
7 Optimized tank wall cooling arrangement
8 Underport burner firing technology
9 Separate regenerator chamber technology
10 Electrical boosting technology
11 Bubbling technology
12 Intelligent single/dual fuel combustion system
13 Rich oxygen combustion technology
14 Full oxygen combustion technology
15 Induced draft fan exhaust technology
16 Injector fan exhaust technology
17 Key structure pre-assembly before delivery
18 Low energy consumption and long life technology
19 Advanced and reliable computer automatic control system (PLC/DCS, SCADA)
20 Low environmental impact
21 Flue gas treatment technology
22 Waste Heat recovery technology



5.  Application of Finished Products

Small Capacity Soda Lime Glass Melting Machine Impotant Device 1Small Capacity Soda Lime Glass Melting Machine Impotant Device 2




6.  FAQ


Q: Who we are?

A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.


Q:Can you offer design service?

A: Yes, we could design full solution drawings as per your requirements.


Q: Do you offer installation on site overseas?

A:Yes, we can provide our engineer to supervise the installation work on site or provide the the whole installation team on site to finish the project.


Q: How can I get the price?

A: For product line, please provide the detailed specfication of the production you want to product, then we will privode an economic plan for your reference. For engineering service, please provide your requirement, we will provide the detailed schedule and plan for your reference
