Material Mixing Glass Batch Plant Automatic Weighing System And Equipment

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customized

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case, steel frame, tray......

Delivery Time: 60 days after received the down payemnt

Payment Terms: T/T, L/C

Supply Ability: 1 set per 2 months

Get Best Price
Contact Now
Specifications
Highlight:
Application:
Glass Industry
Treated Raw Materials:
Silica Sand, Soda Ash, Feldspar, Dolomite
Condition:
New
Place Of Origin:
China
Voltage:
380V
Capacity:
50tpd
Warranty:
1 Year
Motor Power:
Accordingly
Material:
Mild Steel
After-sales Service:
Engineer Oversea Service Available
Application:
Glass Industry
Treated Raw Materials:
Silica Sand, Soda Ash, Feldspar, Dolomite
Condition:
New
Place Of Origin:
China
Voltage:
380V
Capacity:
50tpd
Warranty:
1 Year
Motor Power:
Accordingly
Material:
Mild Steel
After-sales Service:
Engineer Oversea Service Available
Description
Material Mixing Glass Batch Plant Automatic Weighing System And Equipment

Material Mixing Glass Batch Plant Automatic Weighing System And Equipment





1. Brief Introduction



JEFFER Engineering are proficient in design and supply various batch plant according to product characteristics, site conditions, and the customer's budget and requirements.





2. Main Type of Raw Materials



Item Description
1 Silica Sand
2 Feldspar
3 Dolomite
4 Limestone
5 Soda Ash



Silica sand accounts for more than 60% quantity of the raw materials, Its quality is very important to affect the quality of the finished products. When we select the silica sand, the SiO2 content shall be at least more than 90%.

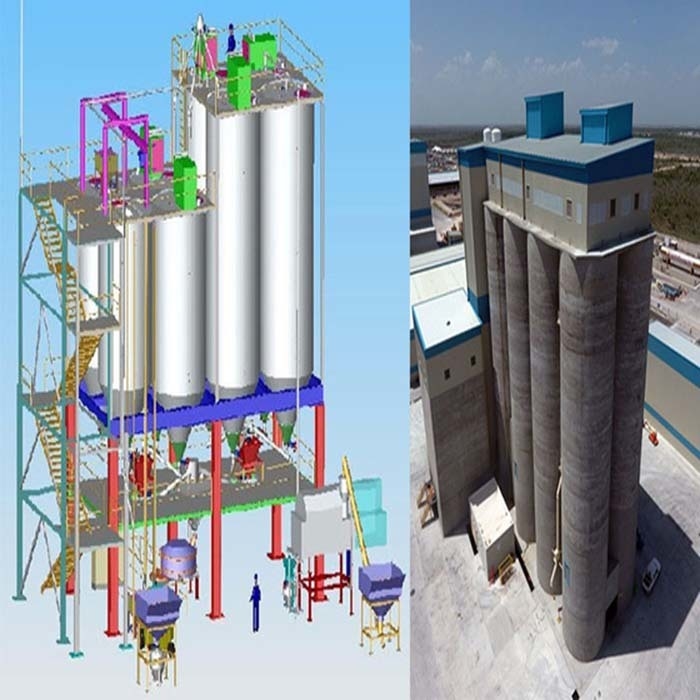

3. Arrangmment Type of Batch Plant



In-Line type



Advantage characteristic:

  • Silos arrange on one line.
  • The materials convey to mixer by belt conveyor after discharge from the scale hopper.
  • The mixing room is separatly arranged.
  • Material loading system is arranged on one line.

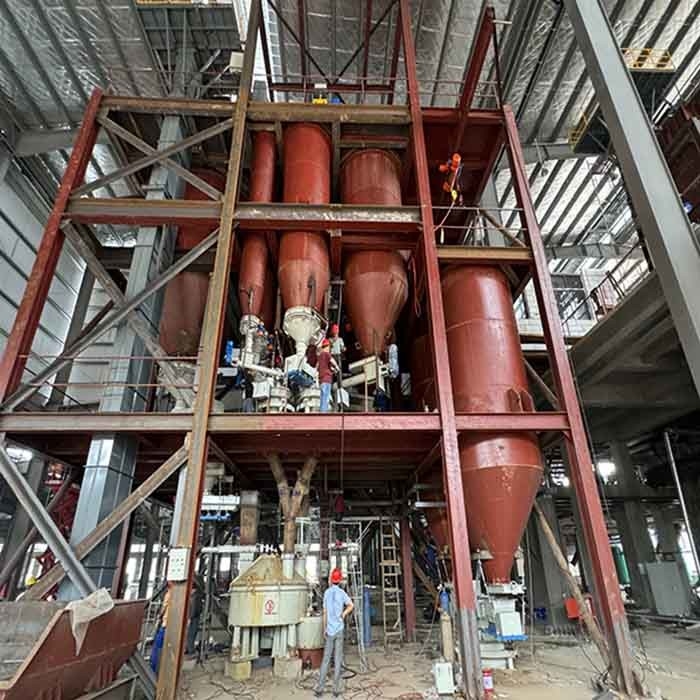

Tower type



Advantage characteristic:

  • Mixer, scales and silos are vertically arranged.
  • The scales are connected with the mixer directly.

Material Mixing Glass Batch Plant Automatic Weighing System And Equipment 0

4.  Main Equipment of Batch Plant

  • Scrubbing machine

Simple structure

High crushing efficiency, energy saving and environment protecting

  • Hindered settler

Hindered settler is used for classifying silica sand or other mining coarse and fine particle, it adopts to classify the mineral with different gravity and replace the fine screen for force control.

  • Desliming hopper

Desiliming hopper also calls circular cone, it is a simple classification, desliming and thickening device.

  • Hydraulic classifier

Hydraulic classifier is a particle classifying unit and system equipment in mineral classifying professional area.

  • Dust collector

Bag-type dust collector is a kind of high-efficiency special purification equipment, which is suitable for the top of power plant ash warehouse, powder warehouse, etc.

  • Mixer

Mixer is a kind of mechanical equipment that could mix two or more types of materials homogeneous together.

  • Bucket elevator

The bucket elevator consists of upper section, lower section, intermediate section, deriving section and operation section.



Material Mixing Glass Batch Plant Automatic Weighing System And Equipment 1





6. FAQ



Q: What does JEFFER do?
A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.



Q: How do you control the quaility?
A: All our processes are strictly combined with ISO standard. And our professional team will supervise the quality control during the design and manufacture.



Q: Can you offer design service?
A: Yes, we could design full solution plan as per the requirements of the client.



Q: Do you offer installation on site overseas?
A: Yes, we can provide our engineer to supervise the installation work on site or provide the the whole installation team on site to finish the project.
