380V Glass Processing Plant

small.img.alt small.img.alt

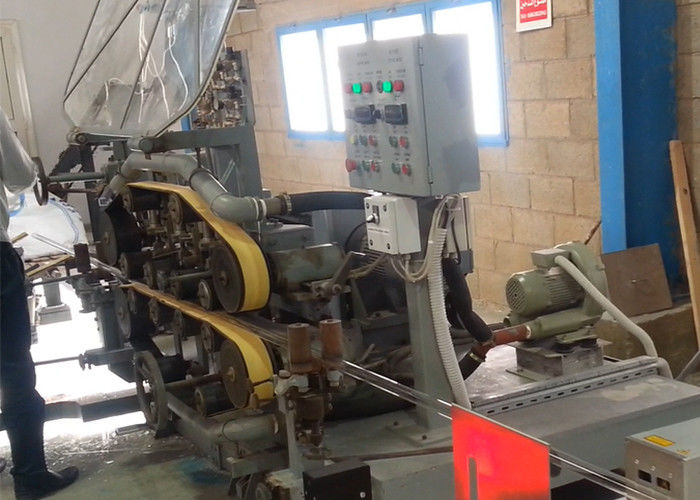

Large Image :  380V Glass Processing Plant

Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wood case, tray, steel frame........
Delivery Time: 90 days after received the down payment
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 month
Detailed Product Description
Material: Glass Color: Amber
Size: Customized Application: Pharmacy
Shape: Round Votalge: 380V
Condition: New Capacity: Customized
Warranty: 1 Year Service: Engineer Overseas Service Available
High Light:

ISO45001 380V Glass Processing Plant


380v Tube Making machine


JEFFER Glass Processing Plant

Amber Glass Tube, Glass Processing Plant, Pharmacal Tube Making



1. Brief introduction

Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.


Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.


At present, most of the tube glass production line mainly adopts horizontal stretching Danner process and Vello process.


The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.


2. Forming process


  • Danner process

The glass liquid flows out from the furnace through the throat, goes into the rotating cylinder, the glass liquid will form a tubular type under a rotating speed of the cylinder. The tubular shape will be stretched and form a glass tube via graphite guide roller by Danner machine.


  • Vello process

The glass liquid flows out from the throat, and goes into a heat-resistance alloy pipe, the glass liquid will form into a tube under the function of compressed air.



3. Application of tube glass


Item Application
1 Biological medicine
2 Glass instrument
4 Lighting
5 Chemical
6 Nuclear
7 Electric glass
8 Others



The optimal choice used for pharmaceutical glass tube must be neutral borosilicate glass tubes.


General paramter of borosilicate glass tube:


Item Description
Density 2.23 g/cm3
Hardness >7
Modulus of elasticity 63·103N·mm-2
Tensile strength 4.8x107pa(N/M2)
Compressive strength (0-300) 3.3±0.1×10-6K-1
Thermal conductivity 1.2W·m-1·k-1
Softening point 820±10°C
Strain point 516±10°C



Main material componsition:

  • SiO2
  • B2O3
  • Al2O3
  • Na2O
  • K2O

380V Glass Processing Plant 0
