Waste Gas Recycle Silica Sand 380V End Fired Furnace With Regenerator

Name: Waste Gas Recycle Silica Sand 380V End Fired Furnace With Regenerator
Brand: JEFFER Engineering and Technology Co.,Ltd
SKU: Customized
Availability: InStock

Brand Name:	JEFFER
Model Number:	Customized
MOQ:	1 set
Price:	Negotiable
Delivery Time:	150 days after received the down payment
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO90014, ISO45001

Material:

Mild Steel

Voltage:

380V, 50Hz

Application:

Manufacture Industry

Product:

Glass Product

Raw Material:

Silic Sand

Warranty:

One Year

Energy:

Natural Gas

Color Of Product:

Customized

Service:

Engineers Available To Service Machinery Overseas

Training:

Available

Packaging Details:

Wooden case, steel frame

Supply Ability:

1 set per 5 month

Highlight:

380V End Fired Furnace

380V Glass Melting Furnace

380V Silic sand End Fired Furnace

Product Description

Glass Melting Furnace, End Fired Furnace With Regnerator For Waste Gas Recycle

1. Brief Description

Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.

The end fired furnace is named by the longitudinal arrangement of the burner port and the U shape of flame combustion route. At present, the end fired furnace is more widely used in the glass industry.

Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.

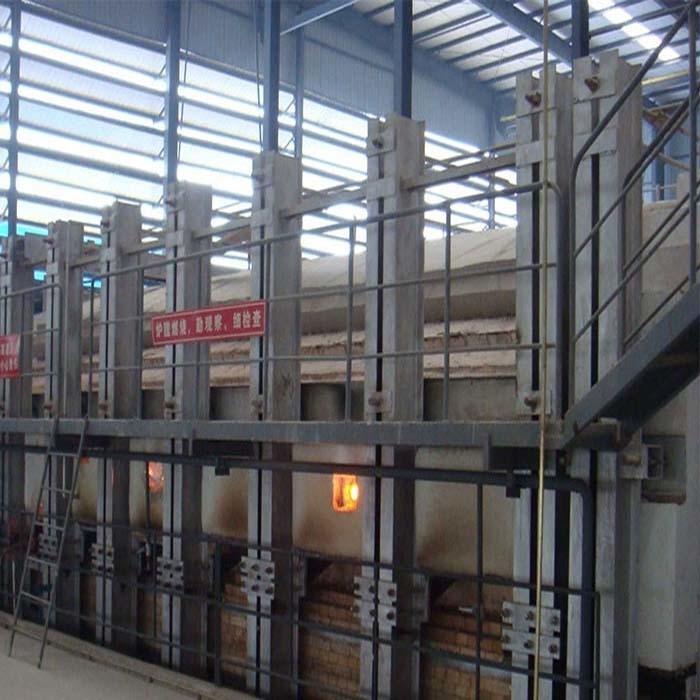

Waste Gas Recycle Silica Sand 380V End Fired Furnace With Regenerator 0

2. Advantage

1	Long Flame
2	High efficiency of heat utilization
3	Low energy consumption
4	Lower investment
5	Smal foot print

3. Factors that influence the melting effects

1	Characteristic of raw materials
2	Chemical compon
3	Material feeding method
4	Melting temperature

4. Main sections of furnace

Working tank

Normally, the semidiameter of working tank is equal to the width of the melting tank, the depth of the working tank is less than 300mm-400mm of the melting tank.

Dog house

Normally, the temperature of the dog house is about 1100°C~1400°C. The batched materials will be pre-melted at this section.

Port

It is an important part of furnace, it is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the waste gas out.

Flame space

Flame space is a space which is combined with breast wall, crown, and front and back gable wall. The fuel shall completely combust in the flame space, in order to ensure enough heating of raw materials melting and clearing.

Throat

Throat is a core section of the furnace, it will affect the quality of glass and furnace campaign. The temperature of glass will reduce when flowing through the throat.

Regenerator

The regenerator can heat the combustion air by exhausted gas coming out from the furnace with the help of checker brick. It can not only utilize the waste heat of gas, but also it can heat the combustion air to a higher temperature, which is useful to increase the working temperature. The waste gas can exhaust and the combustion air can go into the access.
