Big Size Heavy Oil Cross Fired Furnace

Name: Big Size Heavy Oil Cross Fired Furnace
Brand: JEFFER Engineering and Technology Co.,Ltd
SKU: Customized
Availability: InStock

Brand Name:	JEFFER
Model Number:	Customized
MOQ:	1 set
Price:	Negotiable
Delivery Time:	180 days after received the down payment
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, ISO45001

Condition:

New

Voltage:

380V, 50Hz

Dimension:

Customized

Application:

Glass Industry

Products:

Various

Warranty:

One Year

Type:

Cross Fired Furnace

Fuel Type:

Heavy Oil

Color:

Customized

After-sales:

Engineers Available To Service Machinery Overseas

Packaging Details:

Wooden case, steel frame

Supply Ability:

1 set per 6 month

Highlight:

Heavy Oil Cross Fired Furnace

ISO45001 Heavy Oil glass furnace

ISO9001 Cross Fired Furnace

Product Description

Heavy Oil Fuel, Glass Furnace Melting Device, Cross Fired Furnace, Big Size

1. Brief Introduction

Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.

The direction of flames of a cross fired furnace is from one side to the other side, which is across the width of the furnace and perpendicular with the flow direction of glass liquid.

Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.

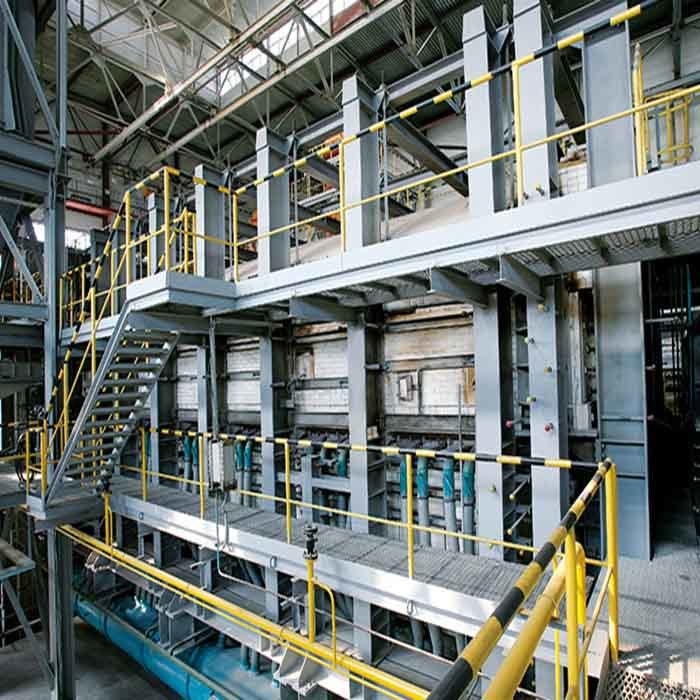

Big Size Heavy Oil Cross Fired Furnace 0

2. Feature

1	High productivity
2	Longitudinal temperature adjustable

4. Main component

Melting tank

The melting tank is combined with melting area and clearing area.

Regenerator

The regenerator as a waste heat recovery device, the combustion air flows through the regenerator, after preheated, it will arrive at the furnace through the port.

Port

It is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the

waste gas out.
