Product Details
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001， ISO14001， ISO45001
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 90 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 months
Capacity: |
20-100 Ton Per Day |
Material: |
Mild Steel |
Kind Of Glass: |
Soda-lime |
Color: |
Customized |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Energy Saving |
Waranty: |
One Year |
Application: |
Glass Industry |
After-salses Service: |
Engineering Overeas Service Available |
Capacity: |
20-100 Ton Per Day |
Material: |
Mild Steel |
Kind Of Glass: |
Soda-lime |
Color: |
Customized |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Energy Saving |
Waranty: |
One Year |
Application: |
Glass Industry |
After-salses Service: |
Engineering Overeas Service Available |
Natrual Gas Fusing, Glass Melting Furnace Design And Construction
1. Brief Description
Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.
The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.
Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.
Technical process of glass
Capacity
| Small scale furnace | Daily furnace capacity: below 50tons |
| Medium scale furnace | Daily furnace capacity: 50tons~150tons |
| Large scale furnace | Daily furnace capacity: 150tons plus |
Product
| Flat glass furnace | For float glass, sheet glass and figured glass production line. |
| Domestic glass furnace | For container glass, tableware glass, tube glass, etc production line. |

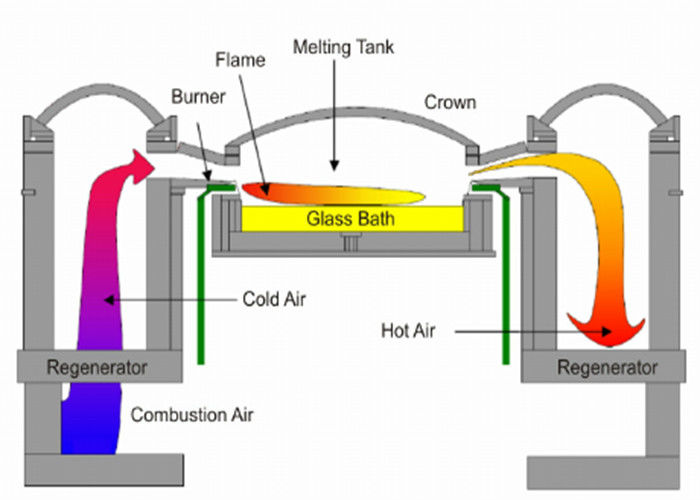

3. Furnace structure
According to current fired furnace structure, it is mainly divided into four parts:
Melting section
It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank.
The flame comes from the burner through the port, which feds in preheated air to increase the flame effiency.
Dog house
Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.
Cooling section
It is a part for cooling and homogenization of the glass liquid, which is also an access for glass liquid distribution.
4. Furnace melting technology system
Reasonable melting technology is a system which could ensure a normal daily production. It will have an important function for high production, high quality, low consumption and furnace campaign.
Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.
Temperature
The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.
Pressure
Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.
Bubbling
Stable shape and position of bubble are an important sign to estimate the melting performance, which will also affect the production capacity of furnace and quality of glass liquid.
