Automobile 180tpd 4mm Float Glass Production Line

Automobile 180tpd 4mm Float Glass Production Line

  • Automobile 180tpd 4mm Float Glass Production Line
Automobile 180tpd 4mm Float Glass Production Line
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customization
Payment & Shipping Terms:
Minimum Order Quantity: Customization
Price: Negotiable
Packaging Details: Suitable packing for multi-transportation
Delivery Time: 180 days after receiving the down payment
Payment Terms: T/T, L/C
Supply Ability: 2 sets per annually
Contact Now
Detailed Product Description
Name Of Product: Float Glass Capacity: 180 Ton Per Day
Application: Construction Voltage: 380V
Dimension (l*w*h): Customized Thickness: 4mm
High Light:

4mm Float Glass Production Line


4mm glass making machinery


180tpd Float Glass Production Line

Thickness Of 4mm, Float Glass Processing Manufacturing Equipement



1. Brief Description


In 1965, China started to research and develop its own float glass technology and successfully put into production and exported the float glass products and technology to the world.


The production technology of float glass is the largest scale mechanization and automation methods of production of flat glass production technology at the present time.




2. Characteristic


Because the glass liquid forms on the metallic tin liquid surface, it can achieve a high-grade double faced fire polished glass surface. The parallelism and flatness of float glass is much better than mechanical polishing effects, but it has a better mechanical capacity and chemical stability than mechanically polished glass.



3. Thickness and Application


Item Thickness  Application
1 2mm,3mm, 4mm, 5mm,6mm



2 2mm, 3mm, 5mm, 6mm Mirror
3 8mm, 10mm Construction
4 12mm Construction
5 15mm Construction
6 19mm Construction



4. Technical Flow Chart of Float Glass Line


  • Qualified batching materials transfer to the furnace for melting.
  • Melted glass liquid flows onto tin bath and form a glass plate through mechanical and chemical methods.
  • When the temperature of glass plate reduced around 600°C, it will be conveyed into the annealing lehr which will relieve the internal stress.
  • After inspection and cutting, the yield glass product is conveyed to the packaging area.


5. Main Equipment Description



5.1. Tin Bath


       It is a key component and one of the most important pieces of equipment of a float glass production line.


5.2. Annealing Lehr


In glass technology, annealing means to put the glass into the annealing lehr for a certain time tor reduce the temperature with a slow speed, so as to not add additional permanent stress or temporary stress. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.

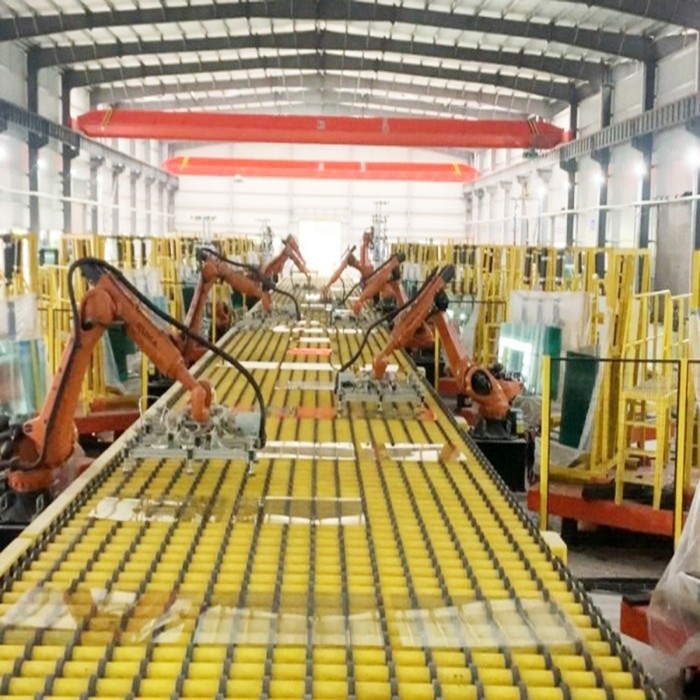

5.3. Cold-end


Automobile 180tpd 4mm Float Glass Production Line 0

Automobile 180tpd 4mm Float Glass Production Line 1
