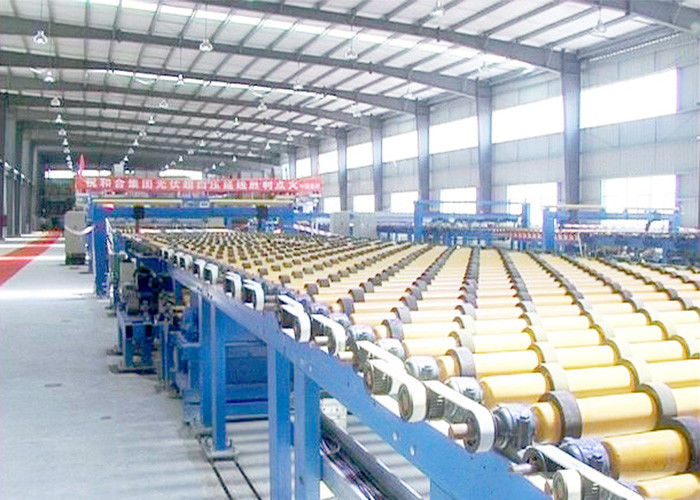

6mm Float Glass Production Line

6mm Float Glass Production Line
6mm Float Glass Production Line 6mm Float Glass Production Line

Large Image :  6mm Float Glass Production Line

Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customization
Payment & Shipping Terms:
Minimum Order Quantity: Customization
Price: Negotiable
Packaging Details: Suitable packing for multi-transportation
Delivery Time: 180 days after receiving the down payment
Payment Terms: T/T, L/C
Supply Ability: 2 sets per annually
Detailed Product Description
Name Of Product: Construction Glass Condition: New
Color: Clear Capacity: 180-300tpd
Waranty: 1 Year After-sales Service: Engineers Available To Service Overseas
High Light:

6mm Float Glass Production Line


ISO45001 6mm float glass machine


ODM Float Glass Production Line

6mm Thickness, Construction Float Glass Processing Treatment Equipment



1. Brief Description

The name of float glass is because of the glass liquid floating and forming on a metallic tin liquid surface. By using this forming method, it is not need to overcome the gravity of the glass, it can enlarge the width of the glass, improve the speed of stretch, and increase the capacity and scale of production.

The float glass has a flatness surface, excellent optical performance, no distortions, due to its good quality, the yield float glass can be used for deep processing fabrication.

2. Characteristic

  • High Quality Flat Glass—no brush line/uniformity thickness/surface flatness/parallel
  • Low power consumption for unit product
  • High production usage
  • Easy to achieve mechanization, automation,

3. Thickness and Application


Item Thickness Application
1 2mm, 3mm, 4mm, 5mm, 6mm Construction
2 2mm, 3mm, 5mm, 6mm Mirror
3 8mm, 10mm Construction
4 12mm Construction
5 15mm Construction
6 19mm Construction


4. Raw Materials

Main materials are mainly including:

Silica Sand
Soda Ash
Salt Cake

Auxiliary materials as the important raw materials, it mainly includes:

Clarify Agent
Coloring Agent
Decolorizing Agent
Oxidizing Agent
Reducing Agent
Combustion Agent

5. Technical Flow Chart of Float Glass Line

6mm Float Glass Production Line 0

6. Main Equipment Description

6.1 Batch Plant

For batching and mixing the raw materials.

6.2 Furance

The melting tank is key part of glass production line, the refractory materials quality is very important.

6.3​ Tin Bath

Glass liquid float on the metallic tin, through stretching, forming, polishing and cooling processing, a qualified glass plate is formed and its temperature reduces around 600°C, the transition roller will send the plate to annealing lehr.


6.4.Protection Gas Station

The protection gas station shall operate continuously to produce and supply the required gas for tin bath.


In order to overcome the air and oxygen brought through the entering of the glass liquid and inert gas itself, a center percentage of hydrogen gas shall be added into nitrogen gas.


Besides the good melting efficient, the bright and clean surface of metallic tin is also another important key to produce good float glass product, So, an inert gas or reducing gas to be adopted for a kind of protection gas to prevent the tin from oxidized.


In the upper space of tin bath, it must be full filled with a protection gas.

Normally, Nitrogen gas (N2) and Hydrogen gas (H2) gas are to be used as protection gas. Which is mainly for preventing or reducing the oxidation of metallic tin liquid.


6.5. Annealing Lehr

In glass technology, annealing means to put the glass into the annealing lehr for a certain time or reduce the temperature with a slow speed, so as to no additional permanent stress or temporary stress will produce. Namely, annealing also means a process which will reduce or eliminate the thermal stress of glass.


The purpose of glass annealing is to eliminate the internal residual stress and optical heterogeneity of float glass in order to stabilize the internal structure of glass.
There are two main processes of float glass annealing:
1. Weaken and eliminate the internal stress.
2. Prevent internal stress from producing.

6.6. Colde-end

6mm Float Glass Production Line 1
