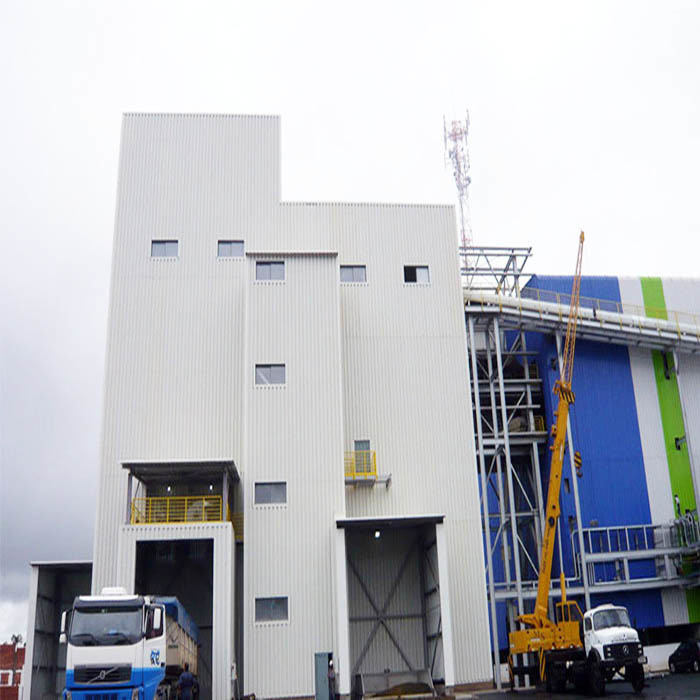

Soda Ash Glass industry 50Hz Material Batching Equipment
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, steel frame, tray......
Delivery Time: 60 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 2 months
Contact Now
Detailed Product Description
Application: Glass Industry Treated Raw Materials: Silica Sand, Soda Ash....
Condition: New Place Of Origin: China
Voltage: 380V, 50Hz Capacity: Customized
Warranty: 1 Year Motor Power: Accordingly
Material: Mild Steel After-sales Service: Engineer Oversea Service Available
High Light:

50Hz Material Batching Equipment

,

50Hz Glass Batch mixer

,

ISO45001 soda ash Material Batching Equipment

Glass Batch Plant, Material Mixing, Material Batching Equipment





1. Brief introduction



The materials used for glass making are called glass raw materials. Based on the different quantities and functions, the materials are divided into main raw materials and auxiliary ones.



In order to improve the production efficiency, if the granularity composition of raw materials can not meet the physical-chemical properties and processing property of glass product, the raw materials will be required to be pretreated before batching.





2. Main type of raw materials



Item Description
1 Silica sand
2 Feldspar
3 Dolomite
4 Limestone
5 Soda ash





3. Types of  auxiliary materials





Item Description
1 Clarifying agent
2 Decolorizing agent
3 Coloring agent
4 Oxidizing agent
5 Cosolvent agent
6 Reducing agent





4. Arrangmment type of batch plant

  • In-Line type

Silos arrange on one line.
The materials convey to mixer by belt conveyor after discharge from the scale hopper.
The mixing room is separatly arranged.
Material loading system is arranged on one line.

  • Tower-type

Mixer, scales and silos are vertically arranged.
The scales are connected with the mixer directly.
The material loading system for big capacities of batch need to load the materials from various directions.





5. Material feeding device

  • Hopper
  • Pneumatic hammer
  • Sensors
  • Material discharging device
  • Instrument and control system



6.  Main equipment of batch plant

  • Scrubbing machine

Simple structure

High crushing efficiency, energy saving and environment protecting

  • Hindered settler

Hindered settler is used for classifying silica sand or other mining coarse and fine particle, it adopts to classify the mineral with different gravity and replace the fine screen for force control.

  • Desliming hopper

Desiliming hopper also calls circular cone, it is a simple classification, desliming and thickening device.



  • Dust collector

Bag-type dust collector is a kind of high-efficiency special purification equipment, which is suitable for the top of power plant ash warehouse, powder warehouse, etc.

  • Mixer

Mixer is a kind of mechanical equipment that could mix two or more types of materials homogeneous together.

  • Bucket elevator

The bucket elevator consists of upper section, lower section, intermediate section, deriving section and operation section.



Soda Ash Glass industry 50Hz Material Batching Equipment 0
