Home ProductsIndustrial Glass Furnace

Furnace Design Gas Combustion Industrial Glass Furnace Glass Production

Furnace Design Gas Combustion Industrial Glass Furnace Glass Production

  • Furnace Design Gas Combustion Industrial Glass Furnace Glass Production
Furnace Design Gas Combustion Industrial Glass Furnace Glass Production
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 180 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 6 months
Contact Now
Detailed Product Description
Capacity: 100tpd Material: Refractory Materials And Steel Structure
Kind Of Glass: Soda-lime Type: Automatic Control
Condition: New Kind Of Fuel: Natural Gas
Consumption: Energy Saving Waranty: 12 Months
Application: Glass Industrial After-salses Service: Engineering Service Available
High Light:

Gas Combustion Industrial Glass Furnace

,

100tpd Industrial Glass Furnace

,

100t/d glass melting machine

Furnace Design Gas Combustion Industry Glass Furnace Glass Production





1. Brief Description of Glass for Furnace Design Gas Combustion Industry Glass Furnace Glass Production
  • Glass was used for windows and doors by the Ancient Romans as early as the 4th century.
  • Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.

JEFFER Engineering has designed and supplied a variety of glass melting furnaces for the customers in China and aboard, ranging from the end fired furnace to the electric furnace; from very small scale pot furnace to large float glass furnace. With the technology of 3D modeling design, and combine the customer's product characteristics, site conditions and individual requirements, JEFFER Engineering ensures the accuracy of the design, avoid rework and on-site adjustments.

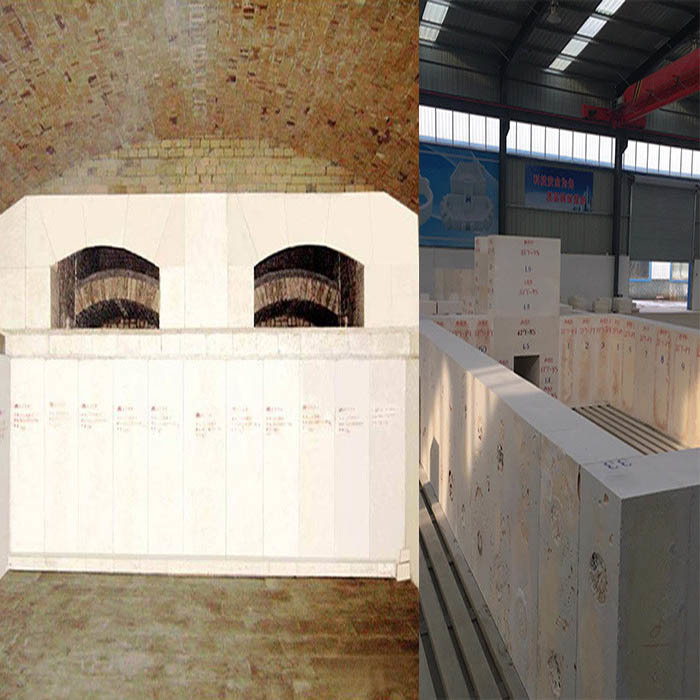

Furnace Design Gas Combustion Industrial Glass Furnace Glass Production 0





2. Type of Glass Melting Furnace for Furnace Design Gas Combustion Industry Glass Furnace Glass Production
  • End fired regenerative furnace
  • Cross fired regenerative furnace
  • Recuperative furnace
  • Full-Oxygen furnace
  • Electric furnace
  • Pot furnace



3. Scale of Furnace for Furnace Design Gas Combustion Industry Glass Furnace Glass Production
  • Small scale furnace         --  Daily capacity: below 50tons
  • Medium scale furnace     --  Daily capacity: 50tons~150tons
  • Large scale furnace         --  Daily capacity: 150tons plus



4. Heating Energy of Furnace Design Gas Combustion Industry Glass Furnace Glass Production



We can supply different kinds of heating type furnace. Including:

  • Natural gas
  • Heavy oil
  • Electricity
  • LPG
  • Coal gas
  • Light diesel oil for stand-by



5.Supply of Equipment & Material  for Furnace Design Gas Combustion Industry Glass Furnace Glass Production
  • Refractory materials
  • Combustion equipment
  • Mechanical equipment
  • Electric equipment, Instrument, and automatic control equipment
6. Structure of Furnace for Furnace Design Gas Combustion Industry Glass Furnace Glass Production

According to current fired furnace structure, it is mainly divided into four parts:

  • Glass melting section
  • Heat source supply section
  • Waste heat recovery section
  • Gas supply and waste gas exhaust

Cooling section of Furnace Design Gas Combustion Industry Glass Furnace Glass Production:

It is a part for cooling and homogenization of the glass liquid, which is also an access for glass liquid distribution.



Air, gas access of Furnace Design Gas Combustion Industry Glass Furnace Glass Production:

The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.



Furnace melting technology of Furnace Design Gas Combustion Industry Glass Furnace Glass Production  includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.



Reasonable melting technology is a system which could ensure a normal daily production. It will have an important function for high production, high quality, low consumption and furnace campaign.
