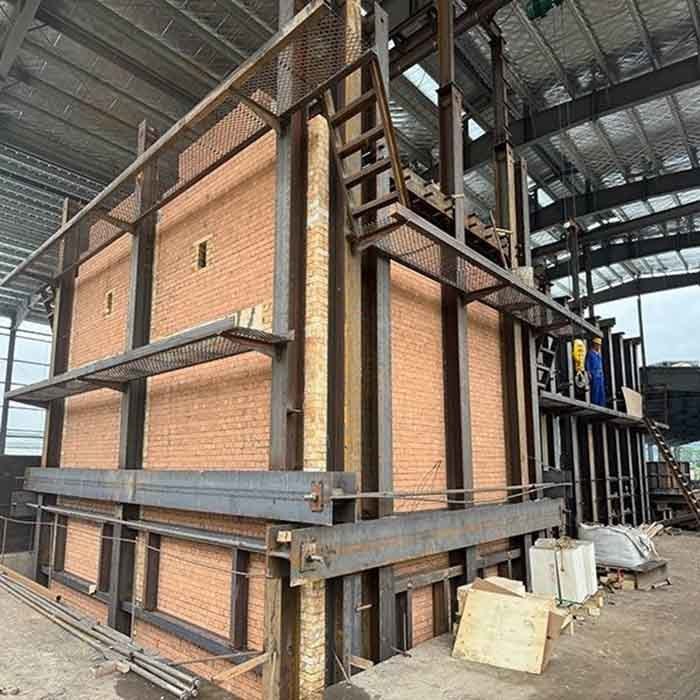

Container Glass Heavy Oil ISO45001 Cross Fired Furnace

Container Glass Heavy Oil ISO45001 Cross Fired Furnace

  • Container Glass Heavy Oil ISO45001 Cross Fired Furnace
  • Container Glass Heavy Oil ISO45001 Cross Fired Furnace
Container Glass Heavy Oil ISO45001 Cross Fired Furnace
Product Details:
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001, ISO14001, ISO45001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, steel frame
Delivery Time: 180 days after received the down payment
Payment Terms: T/T, L/C
Supply Ability: 1 set per 6 month
Contact Now
Detailed Product Description
Condition: New Voltage: 380V, 50Hz
Dimension: Customized Application: Glass Industry
Products: Container Glass Waranty: One Year
Type: Cross Fired Furnace Fuel Type: Heavy Oil
Color: Customized After-sales: Engineers Available To Service Machinery Overseas
High Light:

ISO45001 Heavy Oil Cross Fired Furnace

,

ISO45001 glass melter

,

ISO45001 Cross Fired Furnace

Heavy Oil Combustion, Big Size Glass Melter, Cross Fired Furance For Container Glass





1. Brief Introduction



Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.



The direction of flames of a cross fired furnace is from one side to the other side, which is across the width of the furnace and perpendicular with the flow direction of glass liquid.


Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.



Container Glass Heavy Oil ISO45001 Cross Fired Furnace 0







2. Structure of furance



1 Melting section
2 Breast wall
3 Crown
4 Port
5 Regenerator
6 Cooling section
7 Flue channel
8 Double deck reversing unit
9 Waste heat treatment system







3. Process



1 The batching materials go into the furnace
2 The solid materials melt into glass liquid
3 The glass liquid goes into throat after clearing, homogenization and cooling.







4. Main component



  • Melting tank

The melting tank is combined with melting area and clearing area.



  • Regenerator

The regenerator as a waste heat recovery device, the combustion air flows through the regenerator, after preheated, it will arrive at the furnace through the port.



  • Port

It is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the

waste gas out.
