Glass Melting Electric Glass Furnace Energy Saving Friendly Environment

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customized

Payment & Shipping Terms

Minimum Order Quantity: Customized Product

Packaging Details: Suitable for Multi-transportation

Delivery Time: 180 days after receiving the down payment

Payment Terms: T/T, L/C

Supply Ability: 1 set per 5-6 months

Get Best Price
Contact Now
Specifications
High Light:

20tpd Electric Glass Furnace

,

30tpd Electric Glass Furnace

,

Energy Saving glass melting furnace

Name Of Product:
Electric Melting Furnace
Heating:
Electricity
Heating Efficiency:
40%-80%
Capacity:
5-20 Tons
Color Of Product:
Costomized
Warranty:
1 Year
Service:
Engineer Overseas Service Avaliable
Voltage:
380V
Frequency:
50Hz
Condition:
New
Name Of Product:
Electric Melting Furnace
Heating:
Electricity
Heating Efficiency:
40%-80%
Capacity:
5-20 Tons
Color Of Product:
Costomized
Warranty:
1 Year
Service:
Engineer Overseas Service Avaliable
Voltage:
380V
Frequency:
50Hz
Condition:
New
Description
Glass Melting Electric Glass Furnace Energy Saving Friendly Environment

Glass Melting Electric Glass Furnace Energy Saving Friendly Environment







1. Brief Description





In 1902, Voelker was granted a basic patent for melting glass using the heat generated by an electric current through the batched material. Under the continuous development and improvement of the furnace design technology and electrode, this electric melting method is extensively used.
Between the year 1920 to 1925, Raeder from Norway used graphite electrode for furnace, which has successfully achieved a fully electric furnace.



During World War II, Borel from Swiss did plenty of research and development in electrodes, due to a shortage of fuel, he has done successful work in this territory and his research results have been promoted by a French company St. Gobain.



Glass is an electric conductor under high temperature. There are alkali metal and potassium ions in melted glass liquid. These two ions have conductivity, when the electricity through the glass liquid, the joule heat will be produced, if there is enough calories produced, it can melt the glass, which is called “Glass Electric Melting”.







2.  Advantages of the electric melting:



  • High thermal efficiency
  • More energy saving
  • Small footprint
  • Simple structure
  • Reduce the volatilization of expensive oxide in raw materials
  • Stable melting technology
  • No pollution
  • Lower noise level
  • Improved working condition
  • Homogenized glass liquid
  • High product quality
  • Automatic control
  • Less maintenance cost





 3. Application



The Glass Melting Electric Glass Furnace Energy Saving Friendly Environment is widely applicated in



Optical glass
Borosilicate glass
Lead glass
Fluoride glass
Container glass
Fiber glass





4.  Packing



All the equipment shall be carefully and properly packed, and shall meet the requirements of ocean and inland transportation. JEFFER shall take measures to protect the equipment from the damage of rain water, and moisture in valid time, and ensure the equipment shall be anti-corruption, shockproof and deformation-proof.

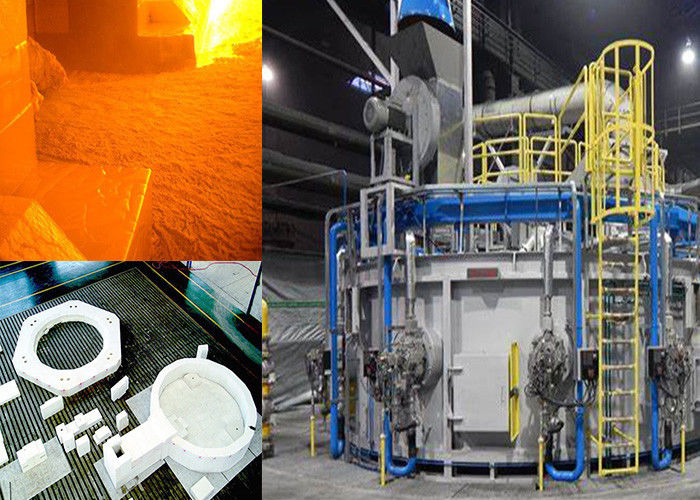

Glass Melting Electric Glass Furnace Energy Saving Friendly Environment 0Glass Melting Electric Glass Furnace Energy Saving Friendly Environment 1



5. FAQ

Q: What does JEFFER do?
A: JEFFER Engineering and Technology Co., Ltd is a professional engineering company specialising in project design, engineering technology consulting, engineering, procurement, construction (EPC), and project operation management.



Q: Can you custom the product?
A: Yes, we design the production line based on the requirement of the client.



Q: How do you control the quaility?
A: All our processes are strictly combined with ISO standard. And our professional team will supervise the quality control during the design and manufacture.



Q: If we need skilled workers, how can we solve this issue?
A: JEFFER Engineering can provide the training service to the client, our engineers will train the workers on site.
