Product Details
Place of Origin: China
Brand Name: JEFFER
Certification: ISO9001， ISO14001， ISO45001
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, tray, steel frame, etc
Delivery Time: 90 days after received the down payemnt
Payment Terms: T/T, L/C
Supply Ability: 1 set per 3 months
Capacity: |
120 Tpd |
Material: |
Refractory Materials |
Kind Of Glass: |
Soda-lime |
Color: |
Customized |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Energy Saving |
Waranty: |
One Year |
Application: |
Glass Industry |
After-salses Service: |
Engineering Overeas Service Available |
Capacity: |
120 Tpd |
Material: |
Refractory Materials |
Kind Of Glass: |
Soda-lime |
Color: |
Customized |
Condition: |
New |
Kind Of Fuel: |
Natural Gas |
Consumption: |
Energy Saving |
Waranty: |
One Year |
Application: |
Glass Industry |
After-salses Service: |
Engineering Overeas Service Available |

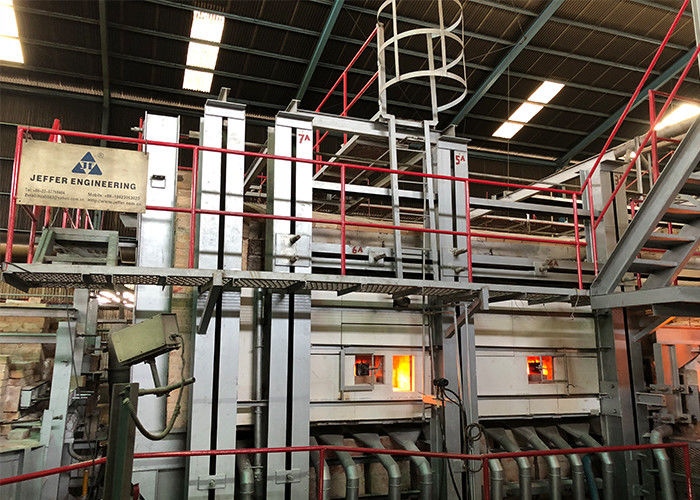

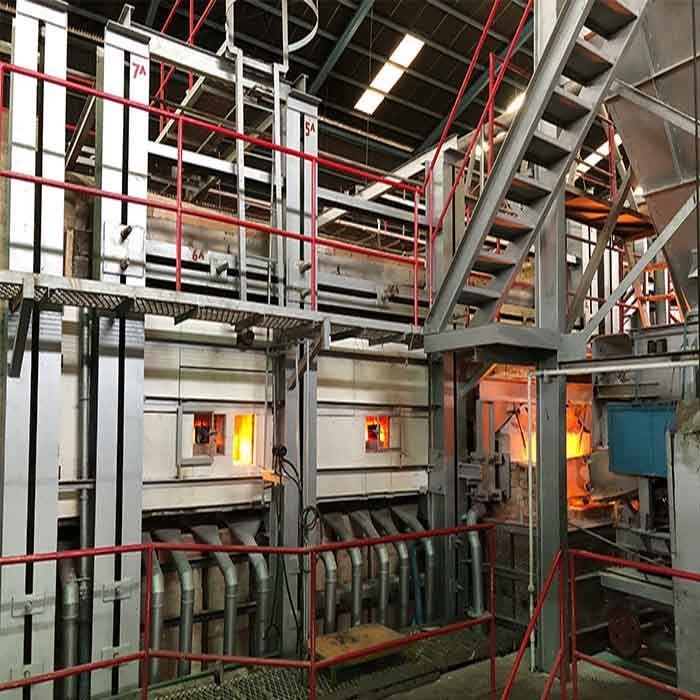

120TPD Container Glass Making Furnace Glass Melting Furance
1. Brief Description of 120TPD Container Glass Making Furnace Glass Melting Furance
Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.
The 120TPD Container Glass Making Furnace Glass Melting Furance is named by the longitudinal arrangement of the burner port and the U shape of flame combustion route. At present, the end fired furnace is more widely used in the glass industry.
Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.
2. Furnace structure of 120TPD Container Glass Making Furnace Glass Melting Furance
It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank.
Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.
The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.
It is an important part of furnace, it is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the waste gas out.
3. Furnace melting technology system
Furnace melting technology of 120TPD Container Glass Making Furnace Glass Melting Furance includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.
4. Supply scope of 120TPD Container Glass Making Furnace Glass Melting Furance
