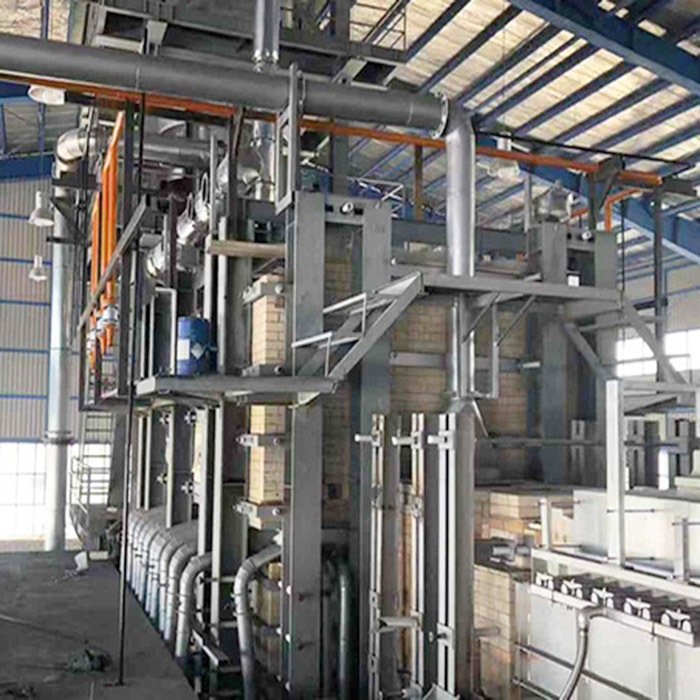

Glass Material Melting 10 TPD Small Recuperative Furnace

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customized

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case, tray, steel frame, etc

Delivery Time: 90 days after received the down payemnt

Payment Terms: T/T, L/C

Supply Ability: 1 set per 3 months

Get Best Price
Contact Now
Specifications
High Light:

10 TPD Recuperative Furnace

,

10 TPD Glass Melting Furnace

,

ISO45001 Flint Recuperative Furnace

Capacity:
10 Tpd
Material:
Refractory Materials
Kind Of Glass:
Soda-lime
Color:
Flint
Condition:
New
Kind Of Fuel:
Natural Gas
Consumption:
Automatic
Waranty:
One Year
Application:
Glass Industry
After-salses Service:
Engineering Overeas Service Available
Capacity:
10 Tpd
Material:
Refractory Materials
Kind Of Glass:
Soda-lime
Color:
Flint
Condition:
New
Kind Of Fuel:
Natural Gas
Consumption:
Automatic
Waranty:
One Year
Application:
Glass Industry
After-salses Service:
Engineering Overeas Service Available
Description
Glass Material Melting 10 TPD Small Recuperative Furnace

10 Ton Per Day, Small Capacity, Recuperative Furnace, Glass Material Melting





1. Brief Description



Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.



Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.





Recuperative furnace, with a narrow melting tank, is using a steel recuperator to pre-heat the combustion air.



Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.



The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.





2. Advantage



Item Description
1 Stable flame
2 No reversal
3 Small footprint
4 Lower investment





3. Furnace structure



  • Melting section

It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank.



  • Dog house

Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.



  • Air, gas access

The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.



  • Port

It is an important part of furnace, it is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the waste gas out.









4. Furnace melting technology system





Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.





The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.





Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.
