100 TPD Flint Construction Sheet Glass Making Machine

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wood case, tray, steel frame......

Delivery Time: 120 days after receiving the down payment

Payment Terms: T/T, L/C

Supply Ability: 1 sets per 4 months

Get Best Price
Contact Now
Specifications
High Light:

100 TPD Sheet Glass Making Machine

,

ISO45001 Sheet Glass Making Machine

,

100TPD steel glass making machine

Name Of Product:
Sheet Glass
Application:
Construction
Raw Material:
Silica Sand, Feldspar
Condition:
New
Capacity:
100tpd
Voltage:
380V
Dimension:
Customized
Warranty:
1 Year
Service:
Engineer Oversea Service Avaliable
Name Of Product:
Sheet Glass
Application:
Construction
Raw Material:
Silica Sand, Feldspar
Condition:
New
Capacity:
100tpd
Voltage:
380V
Dimension:
Customized
Warranty:
1 Year
Service:
Engineer Oversea Service Avaliable
Description

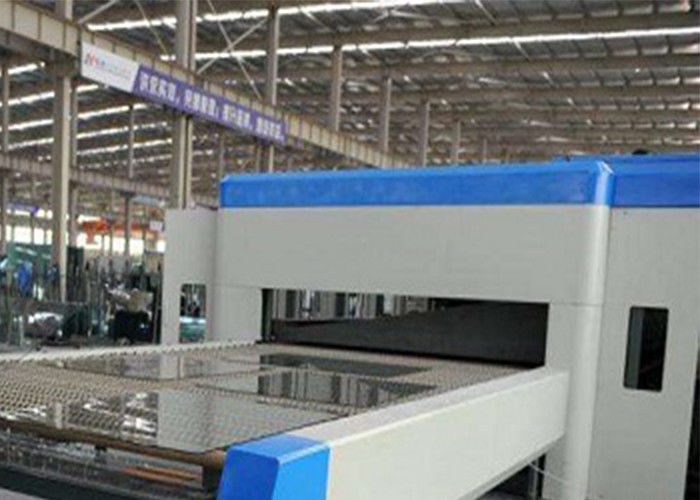

100 TPD Flint Construction Sheet Glass Making Machine

100 Ton Per Day, Sheet Glass Making Machine, Flint Glass, Construction Glass





1. Brief Description


Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.



Production process of sheet glass was created by Belgium Glaverbel Company in 1961.  Under this kind of process, it can achieve a glass thickness from 0.8mm to 12mm.



Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.



The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.



2. Characteristic



Item Description
1 Long-term stable production of thin glass under 3mm.
2 Good flatness
3 Small variation in thickness
4 Excellent product quality




3. Scope of Supply

  • Raw material treatment system
  • Internal and external cullet system
  • Glass furnace
  • Forming device
  • Cold end device
  • Utlity equipemnt
  • Auto control system


4. Raw Materials

Main materials are mainly including:


Silica Sand
Dolomite
Limestone
Feldspar
Soda Ash
Salt Cake
Cullet





5. Main Equipment Description


  • Batch Plant

For batching and mixing the raw materials.


  • Furance

The melting tank is key part of glass production line, the refractory materials quality is very important.


  • Forming

Compared with the float glass process, the sheet glass is combined with slotless process and horizontal stretching process, forming the glass liquid by slotless tank and stretching rotation method.



  • Annealing Lehr
The purpose of glass annealing is to eliminate the internal residual stress and optical heterogeneity of float glass in order to stabilize the internal structure of glass.
